Switches and sockets

The complete range of switching material and socket outlets is available with screw terminals or plug-in terminals.

Are you starting a new electrical installation? Or is it time to replace your old one? Planning is essential. Consider where you would like to have switches, socket outlets and media connections. And how many. In the spaces you live and work in, you can choose the elegance, design and functionality of flush-mounting. You will have the choice between dozens of combinations of colours and materials to finish your switches and socket outlets in a look which suits your interior.

Filters

Connected switching socket outlet for Niko Home Control with pin earthing and safety shutters, Zigbee®

With this connected switching socket outlet with built-in consumption measurement, you choose extra comfort, safety and energy awareness. The socket outlet can be easily installed in all new construction projects and can also easily replace an existing socket outlet in renovation projects without adapting the wiring. You connect the socket outlet without additional cabling with a wireless switch and the wireless smart hub (552-00001) for Niko Home Control. That way you have full control over your socket outlets and can add useful new features such as an all-off or all-on function, automatic calendar functions, remote control, consumption messages and an overview of your energy consumption.

Touchswitch, connected customisable control screen, 230 V

Touchswitch is a completely customisable touchscreen which has an extremely user-friendly interface with clear symbols. The screen is automatically activated when your hand comes near, so you can switch or dim your lights, set moods, set ventilation modes, adjust blinds and sun blinds to the desired position, in one operation. In short, all possible types of controls are available in your Niko Home Control system. Do you have a Niko Home Control thermostat (550-13050)? Then you can easily set the temperature with the touchswitch. With the corresponding configuration app not only can you choose which controls are displayed or where they are displayed on the screen, but also the way you navigate through your control screens. You can download this app for free in the respective app store for your mobile device. The touchswitch can be easily mounted in a standard flush-mounting box and is powered on 230V AC. This 230V AC variant is equipped with a switching contact 10 A (resistive), meaning that it can easily be replaced with a conventional single-pole switch. In combination with the wireless smart hub for Niko Home Control (552-00001) and additional connected control points from the Niko Home Control range for conventional wiring, you can easily add additional automation to your conventional installation. The screen communicates via your wireless home network with the rest of your Niko Home Control system. You need an active internet connection to activate the touchswitch. This internet connection ensures that your touchswitch and Niko Home Control installation are always up-to-date and have the most recent functionalities.

Socket outlet without earthing and with safety shutters

• flush-mounting depth: 21 mm

Socket outlet with side earthing and safety shutters

• centre distance: 71 mm • flush-mounting depth: 28.5 mm

Socket outlet with side earthing, safety shutters and voltage indication

• centre distance: 71 mm• flush-mounting depth: 34 mm

Socket outlet with side earthing, safety shutters and overvoltage protection

This socket outlet is used to protect sensitive electronic equipment (e.g. TV, hi-fi, pc, washing machines, dishwashers and medical equipment) against voltage peaks on the mains due to mains failure or indirect lightning strokes. It does not protect against voltage peaks entering the equipment via other ways (e.g. cable distribution, data lines and telephone lines). The socket outlet exclusively protects the connected device within the technical specifications as described below. The socket outlet carries the CEBEC quality mark in accordance with the IEC61643-1 and EN61643-11 standards (class III, type 3). The varistors that limit the voltage between the phase (L) and zero conductor (N) are thermally monitored. If the red LED lights up, the protection is no longer functioning (the protected device remains connected to the mains) and the overvoltage module needs to be replaced.

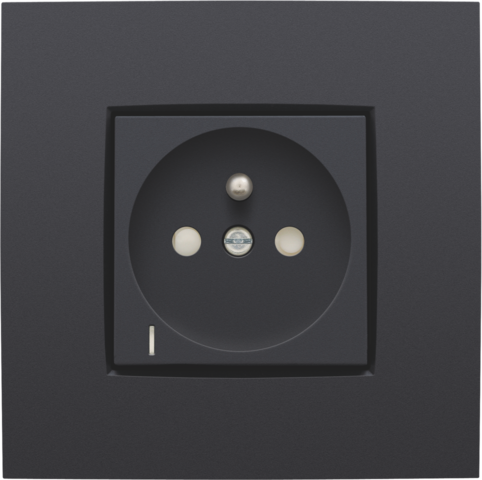

Socket outlet with pin earthing and safety shutters

Belgian earthing system for special installations. • flush-mounting depth: 28.5 mm

Socket outlet with pin earthing, safety shutters and hinged lid

• flush-mounting depth: 28.5 mm

Socket outlet with pin earthing and safety shutters, limited flush-mounting depth

• flush-mounting depth: 21 mm

Socket outlet with pin earthing, safety shutters and voltage indication

• flush-mounting depth: 34 mm

Smart USB-A charger 3,5 A

This smart USB-A charger charges one or two mobile devices, such as mobile telephones, tablets, cameras, MP3 players and navigational devices. The devices must be suitable for charging via a USB port. The "smart" functionality ensures that the mobile device is charged in the fastest way possible (dynamic device recognition).

Socket outlet with pin earthing, safety shutters and overvoltage protection

This socket outlet is used to protect sensitive electronic equipment (e.g. TV, hi-fi, pc, washing machines, dishwashers and medical equipment) against voltage peaks on the mains due to mains failure or indirect lightning strokes. It does not protect against voltage peaks entering the equipment via other ways (e.g. cable distribution, data lines and telephone lines). The socket outlet exclusively protects the connected device within the technical specifications as described below. The socket outlet carries the CEBEC quality mark in accordance with the IEC61643-1 and EN61643-11 standards (class III, type 3). The varistors that limit the voltage between the phase (L) and zero conductor (N) are thermally monitored. If the red LED lights up, the protection is no longer functioning (the protected device remains connected to the mains) and the overvoltage module needs to be replaced.

Double smart USB-A and USB-C charger 3,5 A

This smart USB charger charges one or two mobile devices, such as mobile telephones, tablets, cameras, MP3 players and navigational devices. The devices must be suitable for charging via a USB-A or USB-C port. The "smart" functionality ensures that the mobile device is charged in the fastest way possible (dynamic device recognition).

Coloured socket outlet with side earthing and safety shutters

For emergency power supply (e.g. in hospitals): - green for e.g. general power supply, - orange for e.g. power supply of no break networks, - red for e.g. power supply of data networks. The base and the finishing set have the same colour.

Double potential-equalisation socket outlet

• centre distance: 20 mm • 1 x 6 mm² and 4 x 2.5 mm²

Double socket outlet with pin earthing and safety shutters, pre-wired, horizontal, limited flush-mounting depth

For mounting into a double flush-mounting box without dividing wall.

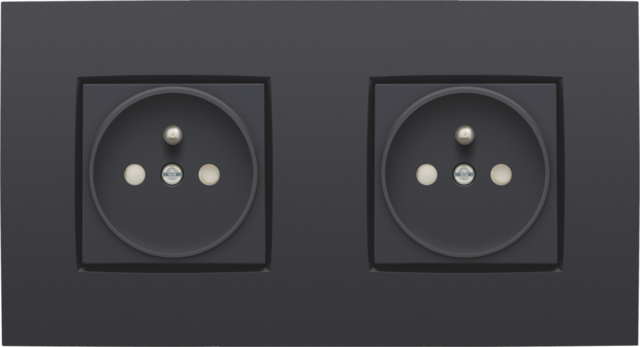

Double socket outlet with pin earthing and safety shutters, pre-wired, horizontal

For mounting into a double flush-mounting box without dividing wall.

Double socket outlet with side earthing and safety shutters, pre-wired, horizontal

• flush-mounting depth: 28.5 mm

Double socket outlet without earthing, vertical

For mounting into a single flush-mounting box. Attention: Without safety shutters.

Double socket outlet with pin earthing and safety shutters, vertical

Including flush surround plate with integrated central plate. For mounting into a single flush-mounting box.

Double socket outlet with side earthing and safety shutters, ultra flat, vertical

Including flush surround plate with integrated central plate. This socket outlet can be flush-mounted in a simple flush-mounting box

Double socket outlet with side earthing and safety shutters, vertical

Coloured socket outlet with pin earthing and safety shutters

For emergency power supply (e.g. in hospitals): - green for e.g. general power supply, - orange for e.g. power supply of no break networks, - red for e.g. power supply of data networks. The base and the finishing set have the same colour.

Coloured socket outlet with pin earthing and safety shutters, limited flush-mounting depth

For emergency power supply (e.g. in hospitals): - green for e.g. general power supply, - orange for e.g. power supply of no break networks, - red for e.g. power supply of data networks. The base and the finishing set have the same colour.

Page 1 of 4
