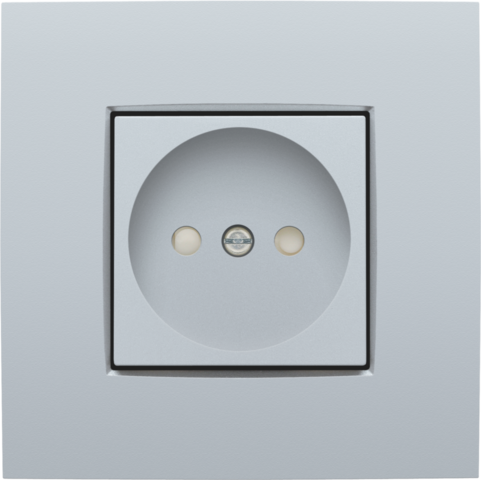

Socket outlet without earthing and with shutters
- flush-mounting depth: 21 mm
Product details
-
This product consists of several components. Below you will find an overview of all the component parts.
Finishing set for socket outlet without earthing, with shutters, flush-mounting depth 21mm
Reference code100-66501Central plate for flush-mounting socket outlet without earthing and shutters. Finishing colour: cream.
Base for socket outlet without earthing, flush-mounting depth 21 mm, 16 A/250 Vac, screw terminals
Reference code170-31100Mechanism for a socket outlet without earthing, with claw fixing and shutters. This socket outlet has a flush-mounting depth of 21 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.
Base for socket outlet without earthing, flush-mounting depth 21 mm, 16 A/250 Vac, screw terminals
Reference code170-31200Mechanism for a socket outlet without earthing, with screw fixing and shutters. This socket outlet has a flush-mounting depth of 21 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.
Base for socket outlet without earthing, flush-mounting depth 21 mm, 16 A/250 Vac, plug-in terminals
Reference code170-31300Mechanism for a socket outlet without earthing, with claw fixing and shutters. This socket outlet has a flush-mounting depth of 21 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.
Base for socket outlet without earthing, flush-mounting depth 21 mm, 16 A/250 Vac, plug-in terminals
Reference code170-31400Mechanism for a socket outlet without earthing, with screw fixing and shutters. This socket outlet has a flush-mounting depth of 21 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.
-
Niko has already created this product for you. We have combined several articles into one finished product, which is available in different variations.
Socket outlet without earthing, with shutters, flush-mounting depth 21 mm, base with screw terminals and finishing set
Reference code100-66500Compound socket outlet (base and finishing set) without earthing. The base is equipped with screw terminals and claw fixing. The socket outlet also has a shutters and a flush-mounting depth of 21 mm.
Socket outlet without earthing, with shutters, flush-mounting depth 21 mm, base with plug-in terminals and finishing set
Reference code100-66505Compound socket outlet (base and finishing set) without earthing. The base is equipped with plug-in terminals and claw fixing. The socket outlet also has a shutters and a flush-mounting depth of 21 mm.
Socket outlet 60 x 71 mm without earthing, with plug-in terminals, base and finishing set
Reference code100-66515Compound socket outlet (base and finishing set) 16 A~250 V is equipped with contact buses with a large contact surface area which must not rest on the base in order to be connected and plug-in terminals with releases. These releases can be operated from the front side by hand or with a screwdriver.
