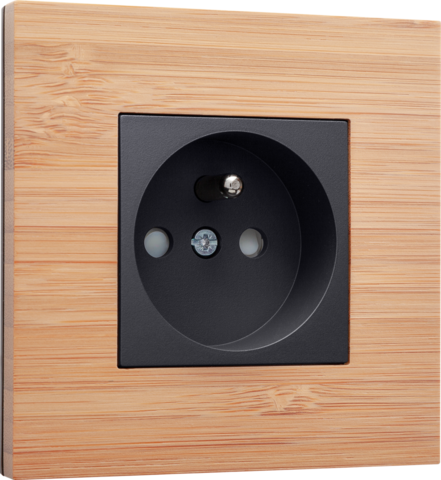

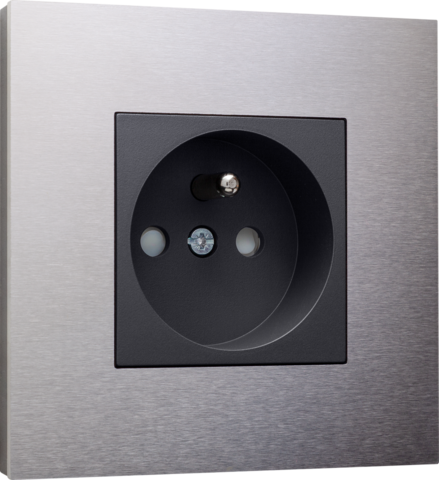

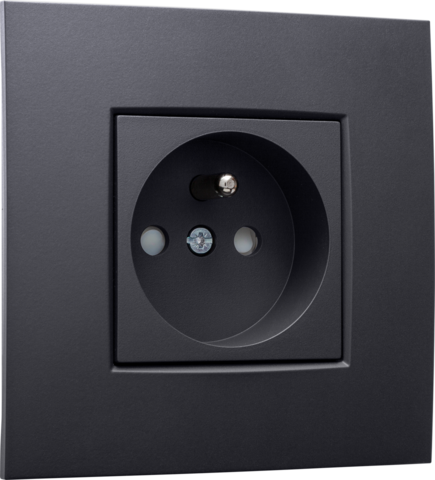

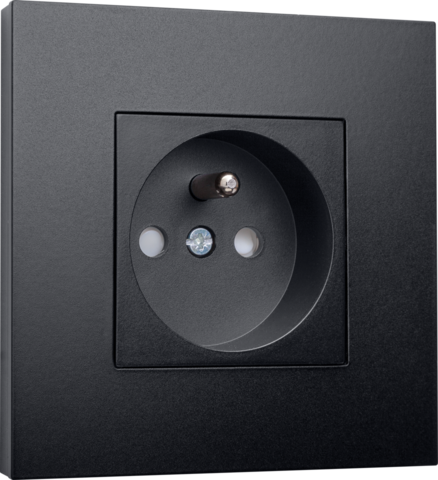

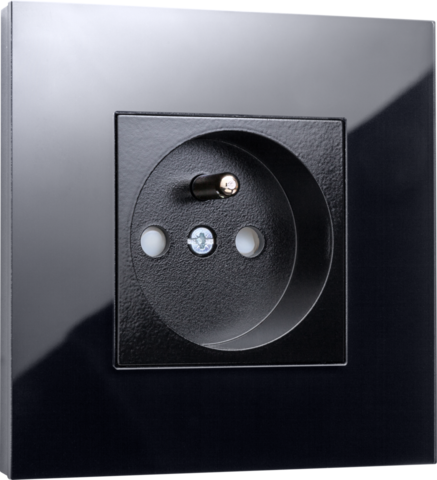

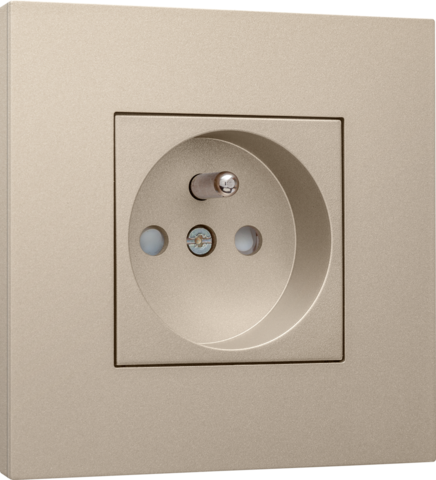

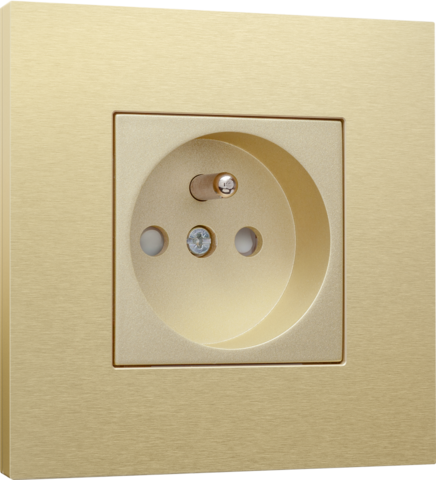

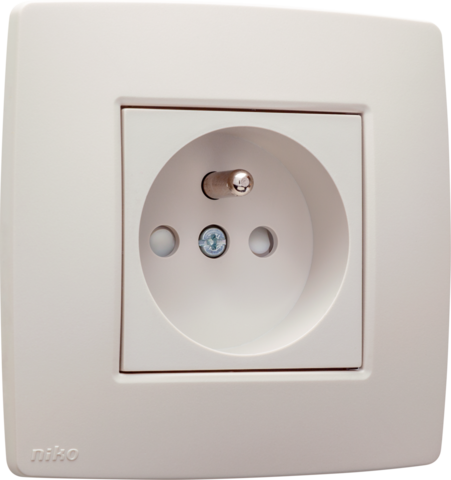

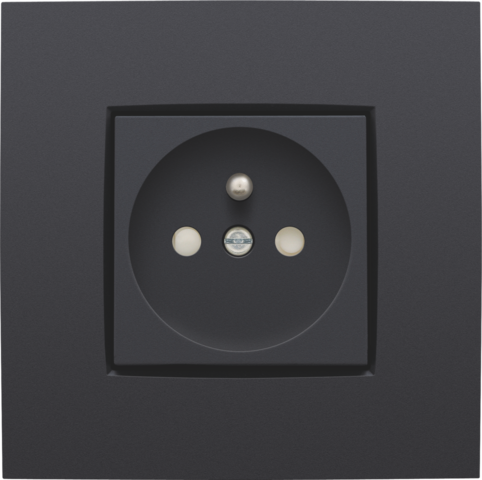

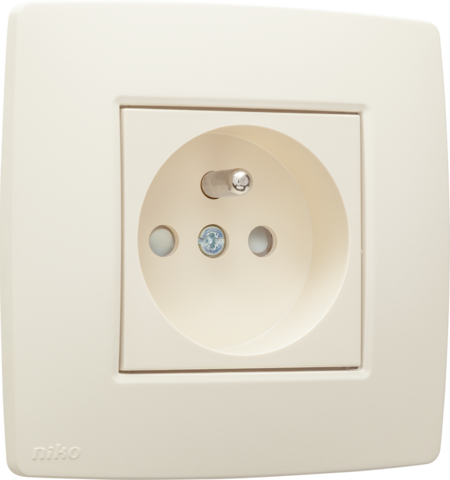

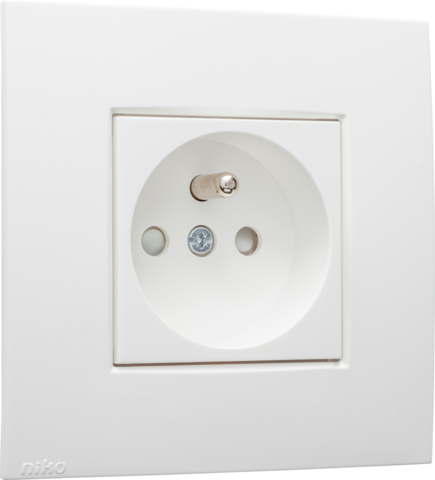

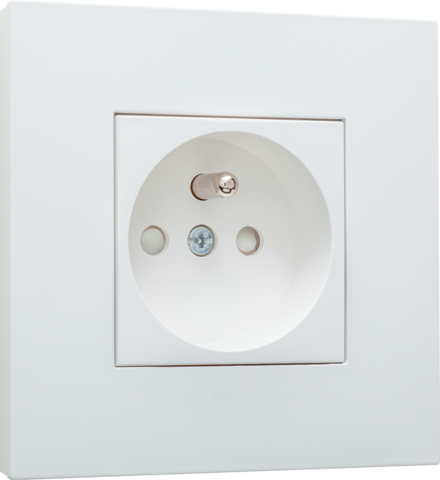

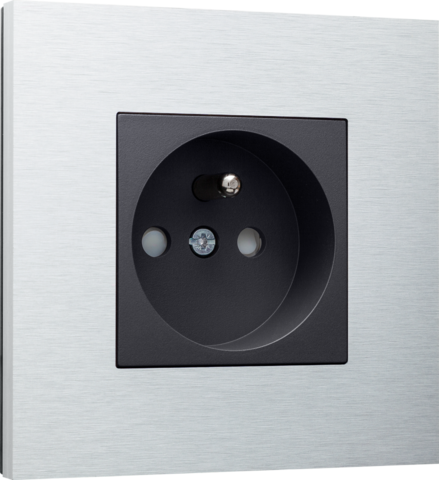

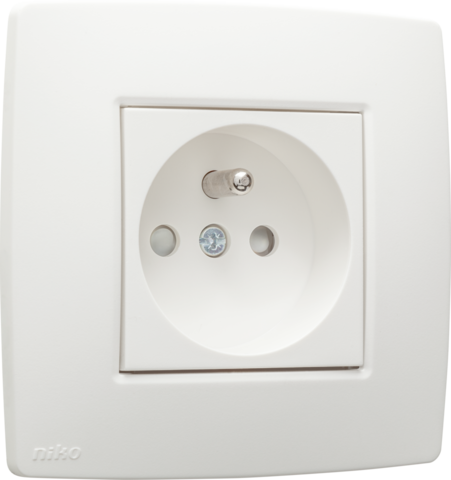

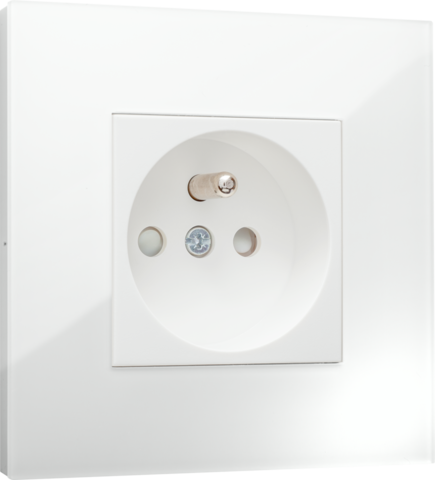

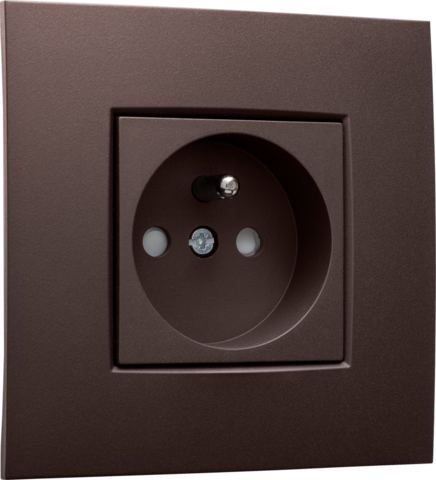

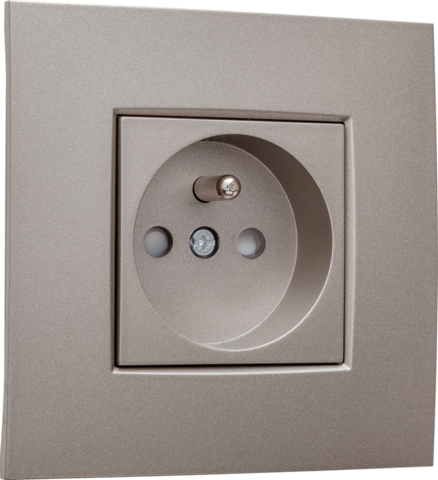

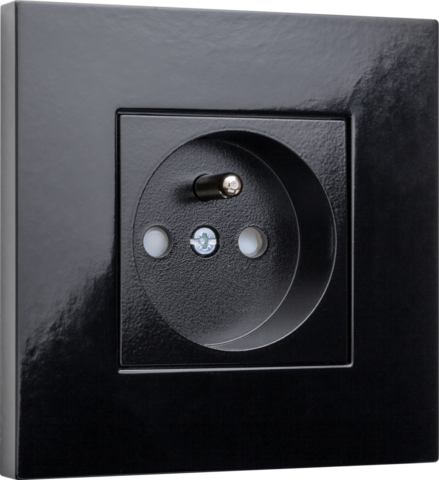

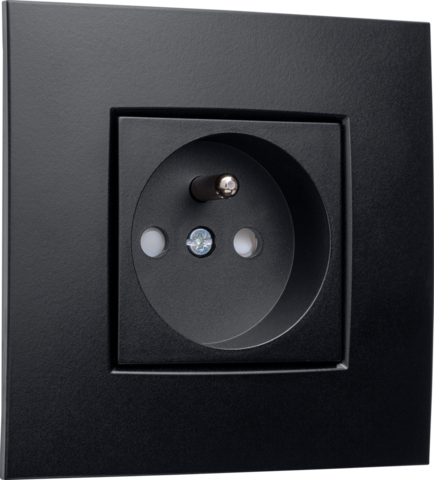

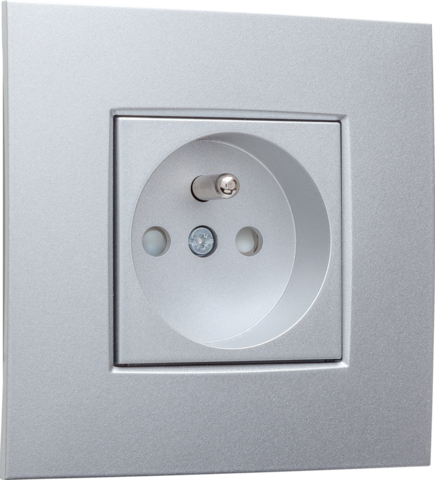

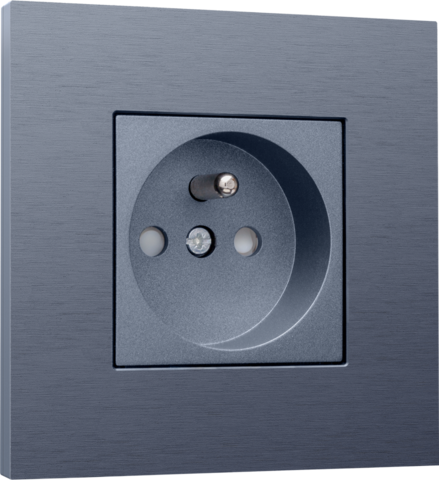

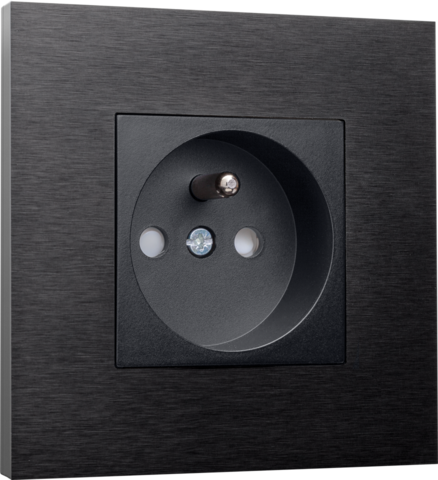

Socket outlet with pin earthing and shutters

Belgian earthing system for special installations.

  • flush-mounting depth: 28.5 mm

Product details

  • This product consists of several components. Below you will find an overview of all the component parts.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

    Reference code
    170-33105

    Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

    Reference code
    170-33115

    Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

    Reference code
    170-33100

    Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

    Reference code
    170-33200

    Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

    Reference code
    170-73105

    Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

    Reference code
    170-73115

    Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

    Reference code
    170-73100

    Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

    Reference code
    170-73200

    Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

    Finishing set for socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm

    Reference code
    100-66601

    Finishing set for a socket outlet with earth pin and shutters. Finishing colour: cream. This central plate must be used with a socket outlet with a flush-mounting depth of 28.5 mm. Finishing colour: cream.

    • 100-66601
      Colour cream
      Reference code 100-66601
    • 101-66601
      Colour white
      Reference code 101-66601
    • 102-66601
      Colour light grey
      Reference code 102-66601
    • 104-66601
      Colour greige
      Reference code 104-66601
    • 121-66601
      Colour sterling
      Reference code 121-66601
    • 122-66601
      Colour anthracite
      Reference code 122-66601
    • 123-66601
      Colour bronze
      Reference code 123-66601
    • 124-66601
      Colour dark brown
      Reference code 124-66601
    • 154-66601
      Colour white coated
      Reference code 154-66601
    • 157-66601
      Colour champagne coated
      Reference code 157-66601
    • 161-66601
      Colour black coated
      Reference code 161-66601
    • 200-66601
      Colour piano black coated
      Reference code 200-66601
    • 220-66601
      Colour steel grey coated
      Reference code 220-66601
    • 221-66601
      Colour gold coated
      Reference code 221-66601

    Finishing set for socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm

    Reference code
    197-66606

    Finishing set for a socket outlet with earth pin and shutters. Finishing colour: green. This central plate must be used with a socket outlet with a flush-mounting depth of 28.5 mm. Finishing colour: green.

    • 197-66606
      Colour green
      Reference code 197-66606
    • 198-66606
      Colour orange
      Reference code 198-66606
    • 199-66606
      Colour red
      Reference code 199-66606
  • Niko has already created this product for you. We have combined several articles into one finished product, which is available in different variations.
    Technical datasheets
    Certificates
    Certificaten CE-Marking

    Socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm, base with screw terminals and finishing set

    Reference code
    100-66600

    This item is also available in a version with plug-in terminals. Reference code <a href="http://niko.eu/article/100-66605">100-66605</a>

    Compound socket outlet (base and finishing set) with pin earthing. The base is equipped with screw terminals and claw fixing. The socket outlet also has a shutters and a flush-mounting depth of 28.5 mm.

    Specification description

    Socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm, base with screw terminals and finishing set.

    • Protection degree: IP20
    • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21-D
    • The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
    • Certification marks: CEBEC, NF
    • Marking: CE

    Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals.

    • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21-D
    • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
    • Material base
      • ureumformaldehyde (UF) with high heat resistance
      • white RAL9010 (approximately)
    • Flush-mounting frame
      • 1 mm-thick metal
      • galvanized on all sides after cutting, even on the cut edges
      • with 4 grooves with screw hole of 7 mm
      • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
    • Flush-mounting depth: 28.5 mm
    • Fixing method
      • simple mounting in a flush-mounting box with grip surfaces
      • with claws that rotate open using screws with a combination screwhead (Pz2 or slot 1 x 5.5 mm), for mounting in a flush-mounting box with grip surfaces
      • engagement depth of claws: 23.5 mm
      • claws turn back completely when loosened
    • Centre-to-centre distance
      • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
      • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
      • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
      • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
      • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
    • End border: 4 rectangular openings (7 x 2.5 mm) which, if the flush-mounting box protrudes from the plasterwork, can compensate for a margin of between 1 and 1.2 mm, so that the faceplate can still butt up perfectly against the wall
    • Wire connection
      • the sockets are fitted with cage clamps with permanent screws with combination screwheads (Pz2 or slot 1 x 5,5 mm)
      • every screw is provided with a screwdriver slot that prevents the screwdriver from sliding off the screwhead.
    • Wire capacity
      • all connection terminals at the top side of the base
      • up to 4 x 2.5 mm² wire per terminal
    • Earthing wire capacity
      • 2 x 2.5 mm² + 2 x 4 mm² wire in the earthing terminal
    • Stripping length
      • 14 mm stripping length
      • indelibly indicated at the rear side: stripping length
    • Ambient temperature: -5 – +40 °C
    • Certification marks: CEBEC, NF
    • Marking: CE

    Finishing set for socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm. This central plate is surrounded with a flat edge that is equipped at all 4 corners with a rectangular opening, each containing a multi-positional snap hook. The construction of the central plate ensures that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The flat edge around the central plate also has 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate. After mounting all components (faceplate, finishing set and switch), no metal parts are visible thanks to the flat edge of the central plate.

    • Material central plate: The central plate is made of rigid PC and ASA. The base material is coloured in mass.
    • Colour: cream (coloured in mass, approximately RAL 1013)
    • Dismantling: To dismount simply unscrew the central plate.
    • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21-D
    • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
    • Fire safety
      • The plastic parts of the central plate are self-extinguishing (comply with a filament test of 650°C)
      • The plastic parts of the central plate are halogen-free.
    • Dimensions of finishing with flat edge: 56 x 56 mm (HxW)

    Dimensions of visible area of finishing: 45 x 45 mm (HxW)

    • Marking: CE
    • 100-66600
      Colour
      Reference code 100-66600

    Socket outlet with earth pin and shutters, flush-mounting depth 28.5 mm, base with plug-in terminals and finishing set

    Reference code
    101-66605

    Compound socket outlet (base and finishing set) with pin earthing. The base is equipped with plug-in terminals and claw fixing. The socket outlet also has a shutters and a flush-mounting depth of 28.5 mm.

    • 101-66605
      Colour
      Reference code 101-66605
    • 100-66605
      Colour
      Reference code 100-66605
