Finishing set for sixfold potential-free push button 24 V, gold coated

Reference code
221-60050
Technical datasheets
Certificaten CE-Marking

Description

Finishing set for a push button with six potential-free 24 V control buttons used to control various lighting points in one or more rooms. Finishing colour: gold coated.

Specification description

Finishing set for sixfold potential-free push button 24 V, gold coated.

  • Function: The three keys (1 per 2 push buttons) are clicked onto the sixfold, potential-free push button at the bottom and the top and are held in place by the snap hooks on the base of the potential-free push button. The back of each key is equipped with two legs that push on the push buttons of the base when the key is pressed.
  • Number of control buttons: 6 control buttons
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: enamelled gold (approximately NCS S 3020 - Y, RAL 1000)
  • Text field: The finishing plate is placed in the centre and consists of two parts: a visible part and an attachment part.
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
Alternative colors
  • 100-60050
    Colour cream
    Reference code 100-60050
  • 101-60050
    Colour white
    Reference code 101-60050
  • 102-60050
    Colour light grey
    Reference code 102-60050
  • 121-60050
    Colour sterling coated
    Reference code 121-60050
  • 122-60050
    Colour anthracite coated
    Reference code 122-60050
  • 123-60050
    Colour bronze coated
    Reference code 123-60050
  • 124-60050
    Colour dark brown coated
    Reference code 124-60050
  • 154-60050
    Colour white coated
    Reference code 154-60050
  • 157-60050
    Colour champagne coated
    Reference code 157-60050
  • 161-60050
    Colour black coated
    Reference code 161-60050
  • 200-60050
    Colour piano black coated
    Reference code 200-60050
  • 220-60050
    Colour blue grey coated
    Reference code 220-60050
  • 221-60050
    Colour gold coated
    Reference code 221-60050

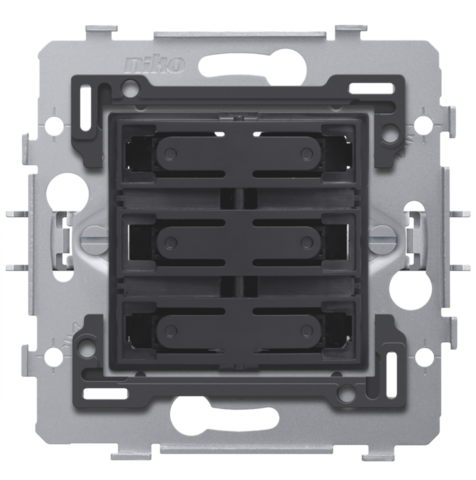

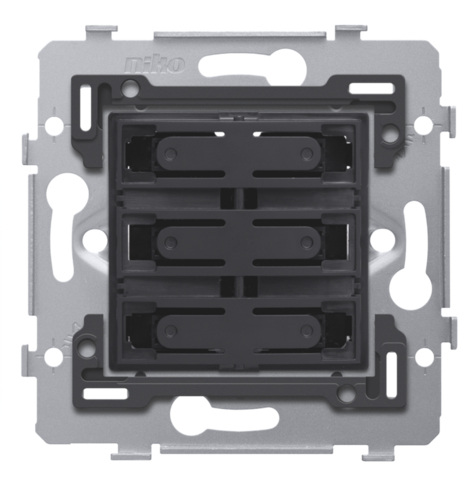

The article above is part of this product:
