Niko Toggle with 2 Toggle parts, with LEDs and comfort sensors, Niko Home Control

Base for a fourfold push button for Niko Home Control II installations on bus wiring. Each push-button contact can be configured individually to activate devices, actions or routines via the Niko Home Control programming software (as of version 2.25). It is fitted with programmable LEDs that provide feedback on the action.

Thanks to its integrated temperature and humidity sensor, this base also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

• Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
• The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The base is equipped with four removable connectors with four plug-in terminals per connector to enable daisy chaining. These connectors can be detached from the base to allow easy installation. The base is installed using claw fixing, in a flush-mounting box with a depth of at least 40 mm.

This base can be used with the Niko Rocker and Niko Toggle design range for Niko Home Control (xxx-46xxx and xxx-47xxx). Finishing parts in the colour of your choice must be ordered separately. Each Niko Rocker or Niko Toggle controls two push button contacts, so you can click two Rocker parts or two Toggle parts (one set) on this base. You can combine multiple bases, depending on the available faceplates.

Base for a fourfold push button for Niko Home Control II installations on bus wiring. Each push-button contact can be configured individually to activate devices, actions or routines via the Niko Home Control programming software (as of version 2.25). It is fitted with programmable LEDs that provide feedback on the action.

Thanks to its integrated temperature and humidity sensor, this base also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

• Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
• The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The base is equipped with four removable connectors with four plug-in terminals per connector to enable daisy chaining. These connectors can be detached from the base to allow easy installation. The base is installed using screw fixing, in a flush-mounting box with a depth of at least 40 mm.

This base can be used with the Niko Rocker and Niko Toggle design range for Niko Home Control (xxx-46xxx and xxx-47xxx). Finishing parts in the colour of your choice must be ordered separately. Each Niko Rocker or Niko Toggle controls two push button contacts, so you can click two Rocker parts or two Toggle parts (one set) on this base. You can combine multiple bases, depending on the available faceplates.

Base for a fourfold push button for Niko Home Control II installations on bus wiring. Each push-button contact can be configured individually to activate devices, actions or routines via the Niko Home Control programming software (as of version 2.25). It is fitted with programmable LEDs that provide feedback on the action.

Thanks to its integrated temperature and humidity sensor, this base also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

• Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
• The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The base is equipped with four removable connectors with four plug-in terminals per connector to enable daisy chaining. These connectors can be detached from the base to allow easy installation. The base is installed using screw fixing, in a flush-mounting box with a depth of at least 40 mm.

This base can be used with the Niko Rocker and Niko Toggle design range for Niko Home Control (xxx-46xxx and xxx-47xxx). Finishing parts in the colour of your choice must be ordered separately. Each Niko Rocker or Niko Toggle controls two push button contacts, so you can click two Rocker parts or two Toggle parts (one set) on this base. You can combine multiple bases, depending on the available faceplates.

Base for a fourfold push button for Niko Home Control II installations on bus wiring. Each push-button contact can be configured individually to activate devices, actions or routines via the Niko Home Control programming software (as of version 2.25). It is fitted with programmable LEDs that provide feedback on the action.

Thanks to its integrated temperature and humidity sensor, this base also supports multi-zone climate and ventilation control, increasing your energy efficiency and comfort.

• Its multi-purpose temperature sensor can be set to control a heating/cooling zone within a Niko Home Control II installation, as a basic thermometer, or to create certain conditions (e.g. control sunscreens)
• The humidity sensor can also be used within routines, for example, to perform automatic ventilation control in a bathroom or toilet

The base is equipped with four removable connectors with four plug-in terminals per connector to enable daisy chaining. These connectors can be detached from the base to allow easy installation. The base is installed using screw fixing, in a flush-mounting box with a depth of at least 40 mm.

This base can be used with the Niko Rocker and Niko Toggle design range for Niko Home Control (xxx-46xxx and xxx-47xxx). Finishing parts in the colour of your choice must be ordered separately. Each Niko Rocker or Niko Toggle controls two push button contacts, so you can click two Rocker parts or two Toggle parts (one set) on this base. You can combine multiple bases, depending on the available faceplates.

This set contains two Niko Toggle parts for Niko Home Control. The Niko Toggle for Niko Home Control can be used as on/off switch, dimmer, motor control or as two separate generic buttons (one when pressing up, one when pressing down) that can activate any device, action or routine in your Niko Home Control installation on bus wiring.

This set can only be used on a base for a fourfold push button, with LEDs and comfort sensors, Niko Home Control (550-160x4). Click both Toggle parts onto the base before you click the Niko Toggle faceplate for Niko Home Control into place.

The Niko Toggle set consists of a click connector made out of high grade, durable plactic that permanently fixes the two levers. The levers are made of enamelled aluminium.

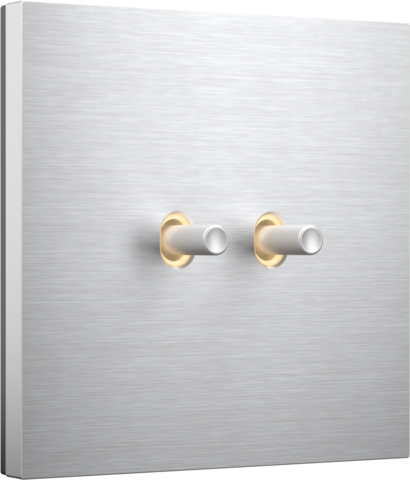

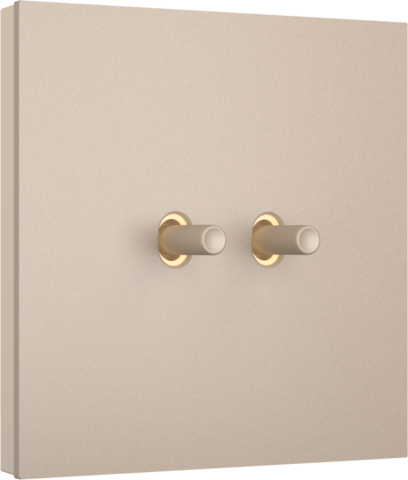

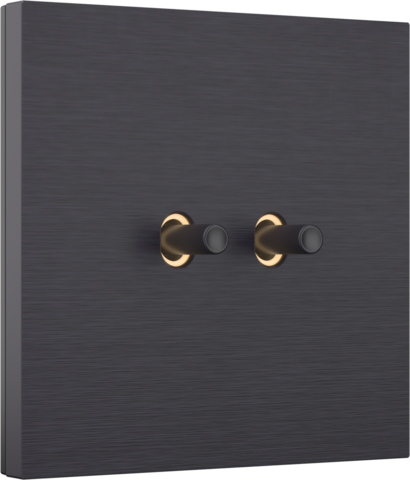

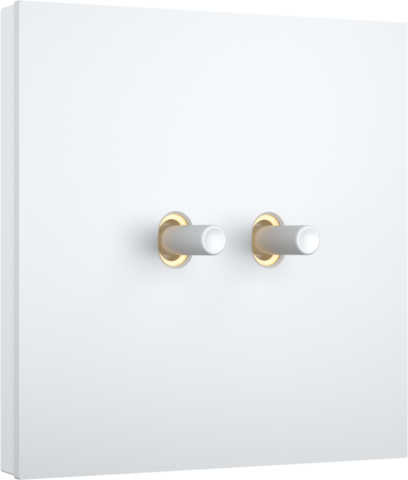

This Niko Toggle onefold faceplate clicks onto a base for a fourfold push button, with LEDs and comfort sensors, Niko Home Control (550-160x4). The faceplate combines with any available Niko Toggle set (2 parts) for Niko Home Control. Please note that it cannot be combined with the classic Niko Rocker and Niko Toggle design range (171-xxxxx).

It consists of an upper frame, light guide and lower frame that are mechanically interconnected. The light guide is made of a translucid plastic and transports the light from each LED in the base to either the top or the bottom of the lever to allow separate feedback. The upper frame is made of steel. The lower frame is made of white polycarbonate (PC) + acrylic-styrene-acrylate (ASA), white coated. The upper frame is 2 mm thick and the lower frame 6 mm.

Niko recommends a design combination with the Niko Toggle set (2 parts) for Niko Home Control in the following colour: steel white coated.
