Products for traditional wiring

You want to make your home smarter but you're not planning on building a new house or knocking down walls to replace your electrics? No problem! Niko Home Control can be installed using traditional electrical wiring.

Depending on what you would like to include, you can replace your existing switches and socket outlets with controls which make your electrical installation smarter by wirelessly communicating with one another. So you can install your Niko Home Control when and wherever you like. And because your existing system is reused, you can opt for Niko Home Control without the added cost of new wiring.

Traditional wiring uses classic 230V electrical wiring that only carries electricity. In a regular electrical installation with electrical wiring, you use one switch to control the items that are connected to that switch via the cables. The switches and socket outlets by Niko Home Control for traditional wiring, communicate wirelessly with a central smart hub. So you can control your lighting and roll-down blinds with your smartphone or operate everything in one go using one button.

Software guides

What is home automation?

Where to buy?

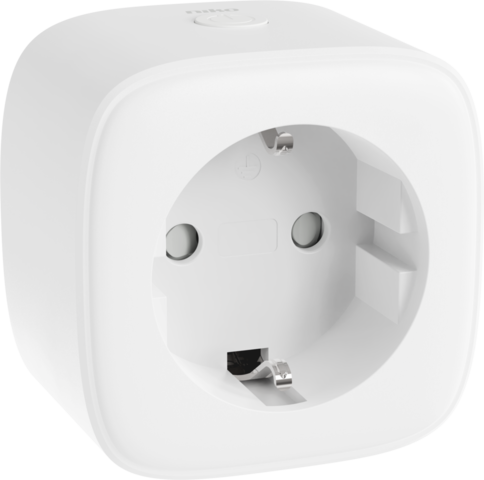

Connected switching socket outlet for Niko Home Control with pin earthing and shutters, Zigbee®

With this connected switching socket outlet with built-in consumption measurement, you choose extra comfort, safety and energy awareness. The socket outlet can be easily installed in all new construction projects and can also easily replace an existing socket outlet in renovation projects without adapting the wiring. You connect the socket outlet without additional cabling with a wireless switch and the wireless smart hub (552-00001) for Niko Home Control. That way you have full control over your socket outlets and can add useful new features such as an all-off or all-on function, automatic calendar functions, remote control, consumption messages and an overview of your energy consumption.

Digital black, connected customisable control screen, 230 V

Digital black is a completely customisable touchscreen which has an extremely user-friendly interface with clear symbols. The screen is automatically activated when your hand comes near, so you can switch or dim your lights, set moods, set ventilation modes, adjust blinds and sun blinds to the desired position, in one operation. In short, all possible types of controls are available in your Niko Home Control system. Do you have a Niko Home Control thermostat (550-1305x)? Then you can easily set the temperature with the Digital black. With the corresponding configuration app not only can you choose which controls are displayed or where they are displayed on the screen, but also the way you navigate through your control screens. You can download this app for free in the respective app store for your mobile device. The Digital black can be easily mounted in a standard flush-mounting box and is powered on 230V AC. This 230V AC variant is equipped with a switching contact 10 A (resistive), meaning that it can easily be replaced with a conventional single-pole switch. In combination with the wireless smart hub for Niko Home Control (552-00001) and additional connected control points from the Niko Home Control range for conventional wiring, you can easily add additional automation to your conventional installation. The screen communicates via your wireless home network with the rest of your Niko Home Control system. You need an active internet connection to activate the Digital black. This internet connection ensures that your Digital black and Niko Home Control installation are always up-to-date and have the most recent functionalities.

Connected single switch, 10 A

The connected single switch has a switching contact to switch lighting. It contains a transmitter and receiver that can communicate wirelessly with the wireless smart hub for Niko Home Control. You can use the connected single switch to replace a conventional switch. It is equipped with an extension terminal so that, in combination with a conventional push button, it can easily replace multiway or intermediate switching. The connected single switch can switch its own contact. Once connected to the wireless smart hub for Niko Home Control, it is possible to configure additional functionalities with the Niko Home Control programming software. For example, you can add the switch to a mood or all-off function. It is possible to disconnect the control from its built-in contact. That way, you have complete flexibility to configure the switching contact and the controls separately via the programming software.

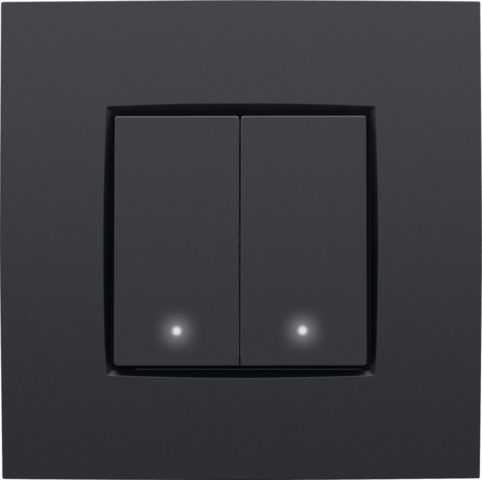

Connected double switch, 2 x 10 A (total max. 16 A)

The connected double switch has a switching contact to switch lighting. It contains a transmitter and receiver that can communicate wirelessly with the wireless smart hub for Niko Home Control. You can use the connected double switch to replace a conventional switch. It is equipped with an extension terminal so that, in combination with a conventional push button, it can easily replace multiway or intermediate switching. The connected double switch can switch its own contact. Once the wireless smart hub for Niko Home Control has been added, it is possible to configure additional functionalities with the Niko Home Control programming software. That way, it is possible to connect these in a mood or all-off function and much more. It is possible to disconnect the control from its built-in contact. That way, you have complete flexibility to configure the switching contact and the controls separately via the programming software.

Connected dimmer, 3 - 200 W, 2-wire

The connected dimmer contains a dimmer contact to control the lighting. It contains a transmitter and receiver that communicate wirelessly with the wireless smart hub for Niko Home Control. You can use the connected dimmer to replace a conventional switch. It is equipped with an extension terminal so that, in combination with a conventional push button, it can easily replace multiway or intermediate switching. The connected dimmer can switch its own contact. With the addition of the wireless smart hub for Niko Home Control, it is possible to configure additional functionalities with the Niko Home Control programming software. For example, it becomes possible to add it to a mood or all-off function. It is possible to disconnect the control from its built-in contact. That way, you have complete flexibility to configure the switching contact and the controls separately via the programming software.

Connected motor control, 2 x 3 A

The connected motor control contains a switching contact to control a 230V motor. It contains a transmitter and receiver that communicate wirelessly with the wireless smart hub for Niko Home Control. You can use the connected motor control to replace a conventional motor control. The connected motor control can switch its own contacts. With the addition of the wireless smart hub for Niko Home Control, it is possible to configure additional functionalities with the Niko Home Control programming software. For example, it becomes possible to add it to a mood or all-off function.

Wireless smart hub for Niko Home Control

The wireless smart hub for Niko Home Control is the brain of the installation. It allows you to connect all connected devices in your installation to the system. Once you have added them, you can easily control them with your smartphone. With the programming software, you can also add extensive functionalities such as moods, all-off actions or presence simulation. The smart hub always needs to be used in combination with the Niko Home Control programming software.

Wireless motion detector, Zigbee®

The wireless motion detector can be used to control other switching contacts. For example, when motion is detected, you can control the contact of another connectable switch, dimmer or motor control. Since the motion detector is powered by a button battery and is supplied with a self-adhesive mounting plate, it can be easily attached anywhere. This motion detector can only be used in combination with the wireless smart hub for Niko Home Control (552-00001). This makes it possible to configure additional functionalities with the Niko Home Control programming software.
