Presence detector, 230 V, 8 m, for flush-mounting box

The presence or absence detector with one channel and daylight control for flush mounting in ceilings is suitable for switching indoor lighting on and off. Equipped with an integrated light sensor. Automatic on/off (after switch-off delay) or manual on/off via an NO push button (230 Vac) (to be ordered separately). In conformity with the European directive for EMC and safety EN60669-2-1.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Certificaten CE-Marking

Presence detector, 230 V, 8 m, for flush-mounting box, white

Reference code
350-20056

This 1-channel presence and absence detector is suitable for flush-mounting in the ceiling and is used for switching indoor lighting. This presence detector has a circular detection range of up to 12 m in diameter. The device has a built-in light sensor and switches the lighting on and off automatically. Manual operation is also possible using the N.O. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically. The device has an IP20 protection degree and conforms to the European directive, EN 60669-2-1, for EMC and safety.

Finishing colour: white

Specification description

Presence detector, 230 V, 8 m, for flush-mounting box, white.

  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum MCB rating: 10 A (limited by national installation rules)
  • Number of channels: 1 channel
  • Light intensity range: 30 lux – 2000 lux
  • Switch-off delay: 5 s – 30 min
  • Detection angle: 360 °
  • Detection range (PIR): ø 8 m from a height of 3 m
  • Ambient temperature: -5 – +50 °C
  • Mounting method: flush-mounting box
  • Mounting height: 2.5 – 4 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 10 A)
  • Maximum load incandescent and halogen lamps (cosφ=1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
  • Maximum load low voltage halogen lamps: 1200 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 165 A/20 ms – 800 A/200 µs
  • Dimensions (HxWxD): 90 x 90 x 56 mm
  • Dimensions visible (HxWxD): 90 x 90 x 24 mm
  • Protection degree: IP20
  • Protection class: Class II device
  • Marking: CE

Accessories

Technical datasheets
Certificaten CE-Marking

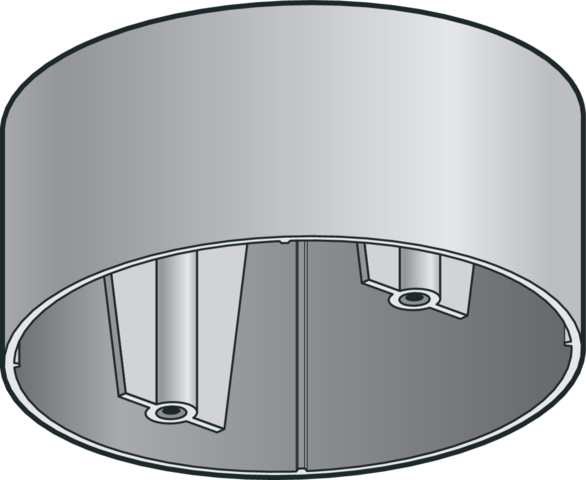

Mounting box for 360° presence detector, for surface mounting, white

Reference code
390-20056

Mounting box intended for ceiling mounting of 360° presence detector.

Compatible articles: 350-20056

Specification description

Mounting box for 360° presence detector, for surface mounting, white

Niko mounting box for ceiling mounting of the 360° presence detector (350-20056). The mounting screws needed to mount the detector to the box are included. The box has a diameter of 89mm and is 42mm high.

Technical datasheets
Technical manuals
Certificaten CE-Marking

Flush mounting box with spring clips

Reference code
390-20057

Flush-mounting box with spring clips for ceiling mounting of detectors

Compatible articles: 350-20056, 350-20065, 350-20066, 350-20070, 350-20071

Specification description

Flush mounting box with spring clips

Flush-mounting box for ceiling mounting of detectors. Provided with spring clips for easy mounting in false ceilings.

Technical datasheets
Technical manuals
Certificaten CE-Marking

Universal remote control for smartphone

Reference code
350-41936

The universal remote control is used for the configuration of detectors via a smartphone app. The Niko detector tool IR app is used to define settings and configuration and the universal remote control transmits the settings and configuration from the smartphone to the detector wirelessly.

Compatible articles: 350-20056, 350-20070, 350-20072, 350-20078, 350-20080, 350-20082, 350-20085, 350-41600, 350-41620, 350-41650, 350-41657, 350-41659, 350-41680, 350-41750, 350-41751, 350-41752, 350-41753, 350-41760, 350-41761, 350-41762, 350-41763, 350-41780, 350-41781, 351-25050, 351-25065, 351-25340, 351-25451, 351-25457, 351-25463, 351-25467, 351-25475, 351-26450, 351-26470, 351-26480, 351-26560, 351-26562, 351-26570, 351-26572

Specification description

Universal remote control for smartphone

Technical datasheets
Technical manuals
Certificaten CE-Marking

IR remote control

Reference code
350-20057

This remote control unit is suitable for setting the flush-mounting presence detector using IR technology. The factory settings that can be changed with this unit are the daylight factor (lux value), the length of time that the light remains on etc.

Compatible articles: 350-20056

Specification description

IR remote control

Surface-mounting height= max 8.5 mm. CECEC approved
