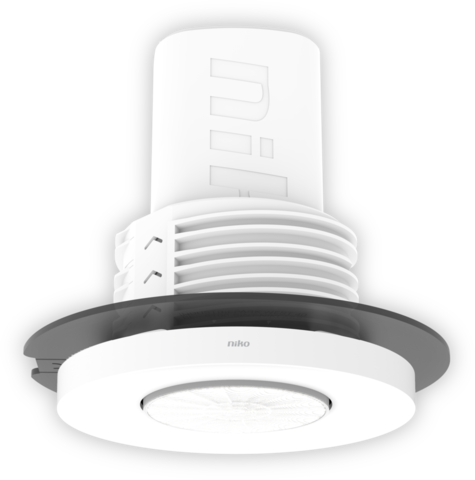

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit)

This flat and discrete presence detector is a DALI-2 master for DALI lighting control in up to 4 zones. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Certificaten CE-Marking

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), white

Reference code
353-651421

This flat and discrete presence detector is a DALI-2 master for DALI lighting control in up to 4 zones. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The lighting zones are defined during commissioning, using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible secondary detectors: 353-650021, 353-651021, 353-652021, 353-750021, 353-751021, 353-752021, 353-852011

Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001

Specification description

Presence detector P48MR, DALI-2, master, 12-13 m, for flush mounting (SnapFit), white.

  • Flat and discrete design
  • Lighting control in up to 4 zones (daylight controlled)
  • Lighting zones can be controlled wirelessly by push buttons
  • SnapFit mounting bracket for easy and stable mounting
  • Quick cabling using screwless and easily accessible plug-in terminals
  • Commissioning using app (iOS/Android) and 2-way Bluetooth® communication
  • Supports DALI broadcast (default) and DALI addressable (up to 64 devices)
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels)
    • auto configuration / orientation light / night mode
    • light scenarios – define and control up to 16 light scenarios
    • wireless communication master-to-master enabling: folding door, lighting control in adjacent areas, unlimited DALI devices ( > 64 DALI devices)
    • multi zone for (smart) board lighting
    • tunable white using integrated presets or third-party integration
    • human centric lighting (24 presets)
    • output relay - control HVAC / standby minimization / light (On/Off)
    • external relay for HVAC / standby minimization / light (On/Off)
    • adjustable turn-on level when daylight control is disabled
    • event log keeps track of recent changes
  • DALI lighting control can be overridden with a 230 V push button - different options available
  • External DALI-2 input devices via DALI bus - up to 64 devices
  • External trigger can be connected e.g. security alarm
  • Web based portal solution for backing up and exchanging configuration files
  • Settings and configuration can be locked with a PIN code

Technical data

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: DALI Broadcast/DALI Addressable
  • Maximum power consumption: 0.6 W
  • Maximum power consumption wireless link active: 0.65 W
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
  • Short circuit behaviour restart period: every 14 s until success
  • Maximum voltage on the DALI bus: 15 Vdc
  • Maximum guaranteed current on the DALI bus: 200 mA
  • Maximum supply current: 250 mA
  • Maximum startup time DALI: <1200 ms
  • Maximum PIR detection startup time: 1 min 10 s
  • Maximum number of 230 V push buttons and switches: 4
  • Maximum number of Bluetooth® push buttons: 4
  • Maximum number of 24 V push buttons: 16 (using 4 DALI-2 push-button interfaces - max. 4 buttons per interface)
  • Possibility to override DALI lighting control using a control: yes
  • Maximum number of control gear on the DALI bus: 64
  • Maximum number of dimmable zones: 4
  • Number of channels: 1 channel
  • Light intensity range: 20 lux – 2000 lux, ∞
  • Switch-off delay: pulse, 30 s – 2 h, ∞
  • Detection angle: 360°
  • Detection range (PIR): ø 12 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 10 A), potential-free
  • Potential-free contact: NO, 230 V, µ10 A
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
  • Maximum load low voltage halogen lamps: 500 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum load LED driver: 500 VA
  • Maximum load electronic transformer: 500 VA
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 165 A/20 ms – 800 A/200 µs
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 120 x 120 x 109.5 mm
  • Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
  • Protection degree: IP20
  • Impact resistance: IK02
  • Halogen-free: yes
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen

Accessories

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

Reference code
353-990992

Black (RAL 9005).

Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2

Specification description

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

  • Colour: black (approximately RAL 9005)
Technical datasheets
Certificaten CE-Marking

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Technical datasheets
Certificaten CE-Marking

Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)

Reference code
353-999869

This lens cover is designed to minimise the detection range of P4XMR and M4XMR detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Specification description

Lens cover for P4XMR and M4XMR detectors, transparent (5 pieces)

  • Dimensions (HxWxD): 5 x 53 x 53 mm
  • Weight: 1 g
