Two socket outlets, 71 mm centre distance, Niko Rocker and Niko Toggle

You can download a printable overview of the complete Niko Rocker/Niko Toggle portfolio here. For more information about the design range, visit our inspiration page.

Product details

This product consists of several components. Below you will find an overview of all the component parts.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

Reference code
170-33105

Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

Reference code
170-33115

Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

Reference code
170-33100

Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, screw terminals

Reference code
170-33200

Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

Reference code
170-73105

Mechanism for a socket outlet with pin earthing, claw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

Base for socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, 16 A/250 Vac, plug-in terminals

Reference code
170-73115

Mechanism for a socket outlet with pin earthing, screw fixing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Finishing set for socket outlet with pin earthing and shutters, for Niko Rocker and Niko Toggle, anthracite coated

Reference code
122-74001

Finishing set for a socket outlet with pin earthing and shutters. This central plate must be used with a socket outlet with a flush-mounting depth of 28.5 mm and a Niko Rocker or Niko Toggle socket outlet faceplate. The finishing set has a black screw and black shutters that blend with the rest of the finishing set. Finishing colour: anthracite coated.

  • 122-74001
    Colour anthracite coated
    Reference code 122-74001
  • 154-74001
    Colour white coated
    Reference code 154-74001
  • 157-74001
    Colour champagne coated
    Reference code 157-74001
  • 161-74001
    Colour black coated
    Reference code 161-74001
  • 220-74001
    Colour blue grey coated
    Reference code 220-74001
  • 221-74001
    Colour gold coated
    Reference code 221-74001

Twofold faceplate, 71 mm centre distance, for 2 socket outlets, Niko Rocker and Niko Toggle, steel white coated

Reference code
154-74801

The twofold faceplate clicks onto two installed socket outlet functions. The faceplate combines with any available Niko Rocker and Niko Toggle socket outlet finishing set.

It consists of an upper frame and lower frame that are mechanically interconnected. The upper frame is made of steel. The lower frame is made of white polycarbonate (PC) + acrylic-styrene-acrylate (ASA), white coated. The upper frame is 2 mm thick and the lower fame 6 mm.

Niko recommends a design combination with the finishing set in the following colour: white coated.

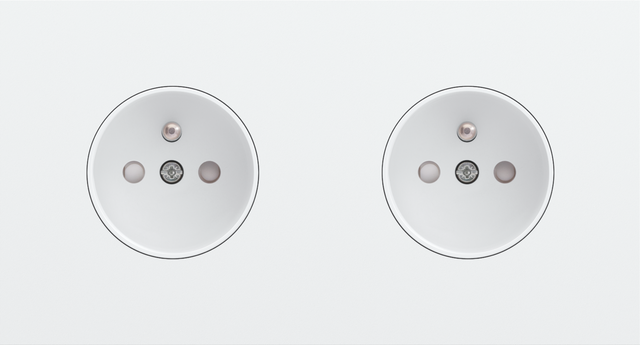

  • 154-74801
    Colour steel white coated
    Reference code 154-74801

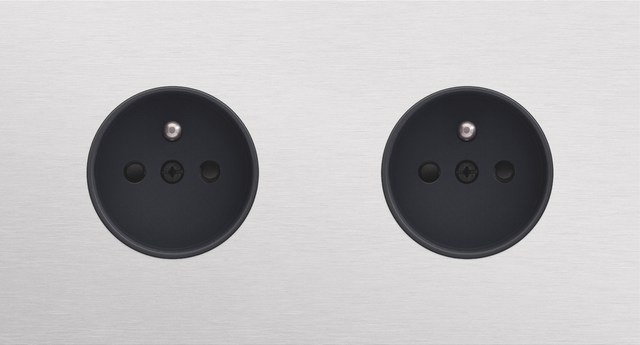

  • 155-74801
    Colour alu grey brushed
    Reference code 155-74801

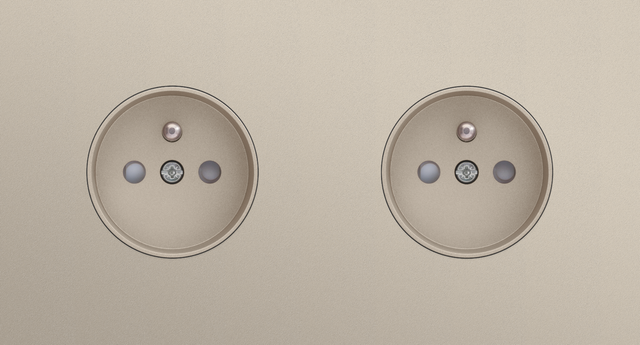

  • 166-74801
    Colour steel champagne coated
    Reference code 166-74801

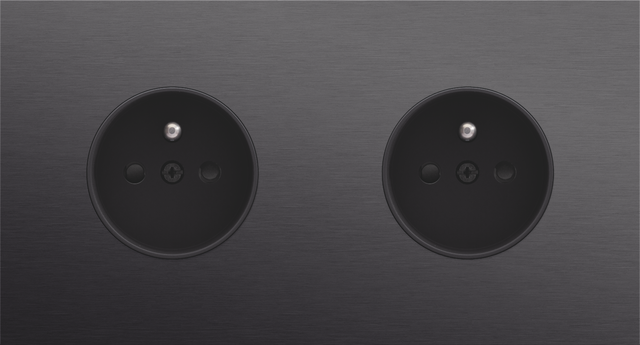

  • 224-74801
    Colour alu black brushed
    Reference code 224-74801

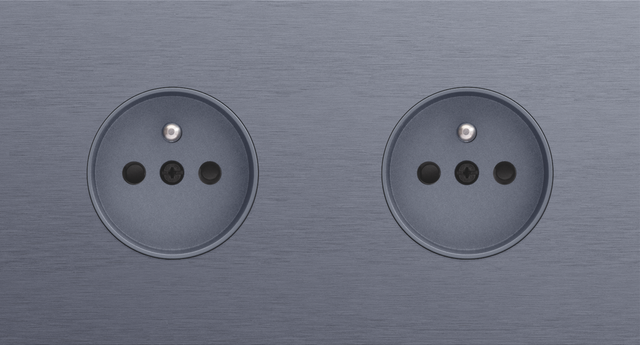

  • 226-74801
    Colour alu blue grey brushed
    Reference code 226-74801

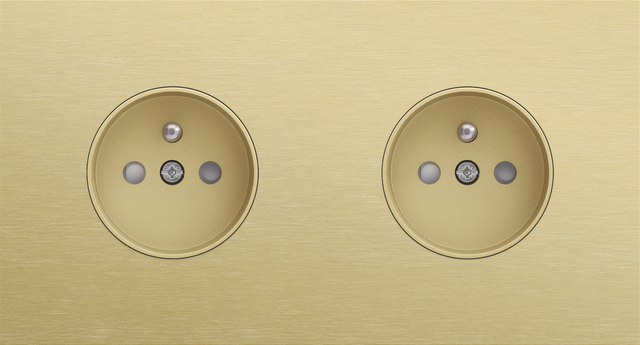

  • 227-74801
    Colour alu gold brushed
    Reference code 227-74801
