Socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, base and finishing set, screw terminals,

Reference code
199-66600

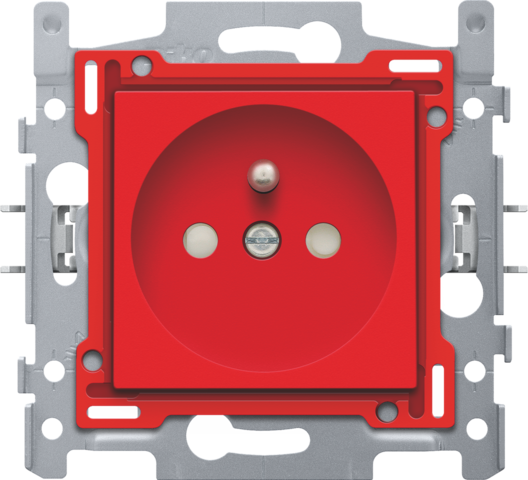

This item is also available in a version with plug-in terminals. Reference code 199-66605

Technical datasheets
Technical manuals
Certificaten CE-Marking

Description

Socket outlet with pin earthing and shutters. This socket outlet has a flush-mounting depth of 28.5 mm and is equipped with screw terminals and claw fixing. Includes finishing set. A faceplate in the colour of your choice must be ordered separately. Finishing colour: red.

Specification description

Socket outlet with pin earthing and shutters, flush-mounting depth 28.5 mm, base and finishing set, screw terminals,.

  • Colour: The cover of the socket outlet and the central plate are coloured in mass, red (approximately RAL 3001) and ensures that after the removal of the central plate, the socket outlet function remains clearly indicated. This is applicable in places where there are many circuits with specifically defined functions, for example, emergency power supplies in hospitals. The central plate is made of rigid PC
  • Fixing method
    • with claws that can be rotated open using screws with a slotted screw head (slot 0.8 x 5 mm), for mounting in a flush-mounting vox with grip surfaces
    • depth of engagement of claws: 31 mm
    • claws turn back completely when loosened
  • End border: 4 rectangular openings (7 x 2.5 mm) which, if the flush-mounting box protrudes from the plasterwork, can compensate for a margin of between 1 and 1.2 mm, so that the faceplate can still butt up perfectly against the wall
  • Wire connection
    • the sockets are fitted with cage clamps with permanent screws with combination screwheads (Pz2 or slot 1 x 5,5 mm)
    • every screw is provided with a screwdriver slot that prevents the screwdriver from sliding off the screwhead.
  • Stripping length
    • 14 mm stripping length
    • indelibly indicated at the rear side: stripping length
  • Fire safety
    • self-extinguishing plastic components (central plate and base cover): complies with a filament test of 650 °C
    • halogen-free
  • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21-D
  • The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Marking: CE
Alternative colors
  • 195-66600
    Colour yellow
    Reference code 195-66600
  • 196-66600
    Colour blue
    Reference code 196-66600

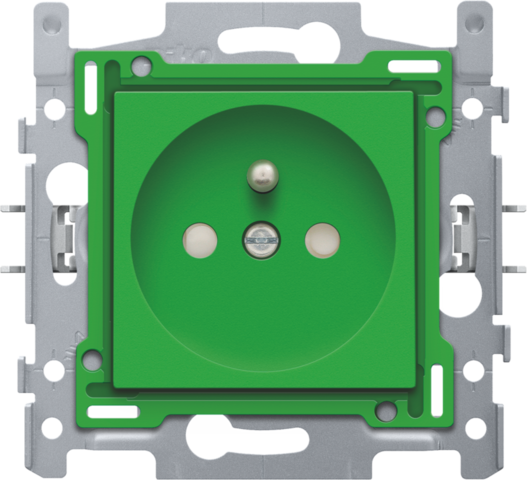

  • 197-66600
    Colour green
    Reference code 197-66600

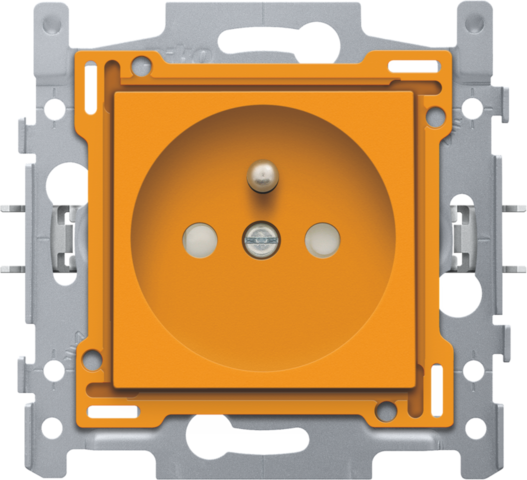

  • 198-66600
    Colour orange
    Reference code 198-66600
  • 199-66600
    Colour red
    Reference code 199-66600
