Adapters

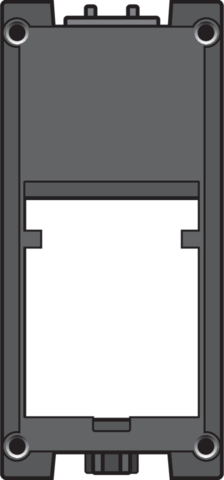

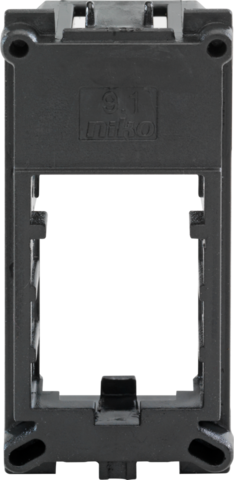

Adaptor 9.1 is an adaptor unit for fitting a single, flat RJ connector 650-450xx in the 45x45 flush-mounting frame.

Adaptor 9.1, single, flat for RJ connectors 650-450xx

• Dimensions (HxWxD): 20.7 x 44.8 x 20.1 mm
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Adaptor 1 can be used for the installation of 1 outlet and can be used for AMP, Siemon, Nexans and Brandon, among others.

Adaptor 2 can be used for the installation of 1 outlet and can be used for Systimax and others.

Adaptor 5 is intended for a single outlet and can be used for Krone, Kerpen, Radiall and Gigamedia, among others

Adaptor 6 is intended for a single outlet and can be used with Panduit among other things.

Adaptor 7 is intended for a single outlet and can be used with CAE, Multimedia Connect/MMC, Abitana, Prysmian and Molex, among others.

Adaptor 4 is intended for a Niko data outlet.

Adaptor 4 for data- outlet(s)

The adaptor has the indelible engraving 4.1 on the front and back. Suitable for integrating 1 Niko outlet. The outlet is clicked into the adapter along the back. The adapter is made of dark grey PC+ASA, complies with a filament test of 650°C and is halogen-free. On each of its 4 corners, the base is equipped with studs that ensure that the central plate is perfectly positioned in relation to the base. The adapter is equipped with snap hooks on the right and left sides that hold the central plate in place. The adapter can be clicked onto a mounting frame 45x45mm, a trunking system with a 45 mm cover height or onto an empty Mini-Patch distribution board with a 45x45 mm opening and is finished with a central plate for 1 outlet (with or without a transparent text field). Dimensions adapter 4.1: 45x45mm

• Dimensions (HxWxD): 45 x 45 x 21.1 mm
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Adaptor 4.2 is intended for a Niko double data outlet.

Double adaptor 4 for data outlet(s)

The adaptor has the indelible engraving 4.2 on the front and back. Suitable for integrating 2 Niko outlets. The outlets are clicked into the adapter along the back. The adapter is made of dark grey PC+ASA, complies with a filament test of 650°C and is halogen-free. On each of its 4 corners, the base is equipped with studs that ensure that the central plate is perfectly positioned in relation to the base. The adapter is equipped with snap hooks on the right and left sides that hold the central plate in place. The adapter can be clicked onto a mounting frame 45x45mm, a trunking system with a 45 mm cover height or onto an empty Mini-Patch distribution board with a 45x45 mm opening and is finished with a central plate for 2 outlets (with or without a transparent text field). Dimensions adapter 4.2: 45x45mm

• Dimensions (HxWxD): 45 x 45 x 17.7 mm
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Adaptor 3.2 is used for a double outlet

Adaptor 3 for data outlet(s)

The adaptor has the indelible engraving 3.2 on the front and back. Suitable for integrating 2 Niko outlets. The outlets are clicked into the adapter along the back. The adapter is made of dark grey PC+ASA, complies with a filament test of 650°C and is halogen-free. On each of its 4 corners, the base is equipped with studs that ensure that the central plate is perfectly positioned in relation to the base. The adapter is equipped with snap hooks on the right and left sides that hold the central plate in place. The adapter can be clicked onto a mounting frame 45x45mm, a trunking system with a 45 mm cover height or onto an empty Mini-Patch distribution board with a 45x45 mm opening and is finished with a central plate for 2 outlets (with or without a transparent text field). Dimensions adapter 3.2: 45x45mm

• Dimensions (HxWxD): 45 x 45 x 21.1 mm
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Adaptor 9.1 is the double, oblique adaptor unit for fitting RJ connectors 650-450xx into the 45x45 flush-mounting frame.

Adaptor 9.1, double, oblique for RJ connectors 650-450xx

• Dimensions (HxWxD): 45 x 45 x 21.1 mm
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Adaptor 4 is intended for a Niko data outlet and for an oblique model

Double adaptor 4 for data outlet(s)

The adaptor is is at the front and back provided with an indelible engraving of the number 4.4. Suitable for integrating 2 Niko outlets. The outlets are clicked into adaptor at the back. The adaptor is made of dark grey pc+asa and complies with a filament test of 650°C and is halogenfree. On each of its four corners, the connection piece is equipped with studs that ensure that the central plate is perfectly positioned in relation to the connection piece. Moreover, the connection piece is equipped with snap hooks on the right and left sides that hold the central plate in place. The adaptor can be clicked onto a 45x45 mm flush-mounting frame and can be finished with an oblique central plate for 2 outlets (with transparent text field). Dimensions adaptor 4.4: 45x45mm

• Dimensions (HxWxD): 45 x 45 x 18.5 mm
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE
