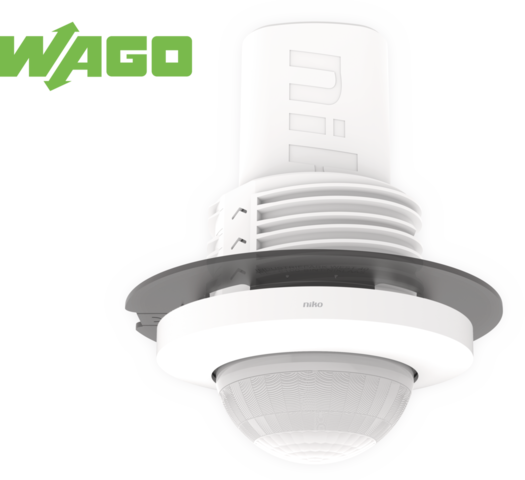

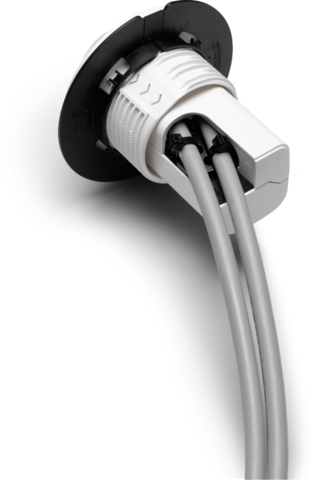

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 5-pol. connectors

This presence detector is a DALI-2 master for DALI lighting control in up to four zones. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with cables and 5-pole female connectors that are each unique, which helps to avoid installation errors and save time.

Use the P48 detector’s internal relay in combination with a distribution box (353-7080X) to enable the following lighting control functions:

  • HVAC control in combination with distribution box 353-70801 to accommodate the integration of HVAC systems
  • Control of non-dimmable ON/OFF lighting with distribution box 353-70802
  • Standby minimisation of luminaires in combination with distribution box 353-70803 to save energy
  • Control of non-dimmable luminaires externally on the DALI-bus with distribution box 353-70806

The range can be extended with up to ten P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI-bus.

These solutions are mainly suitable for offices, classrooms, conference rooms and meeting rooms.

Lighting control can be overridden with 230 V push buttons. Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.

Product details

This product consists of several components. Below you will find an overview of all the component parts.

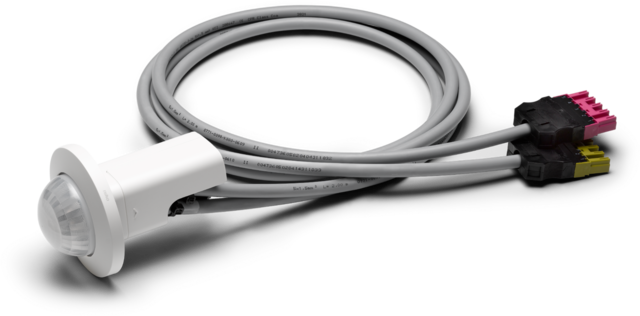

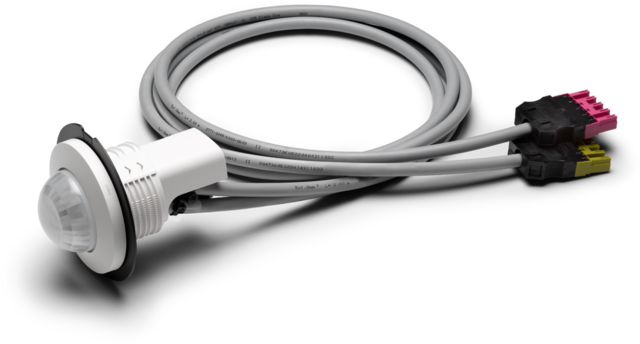

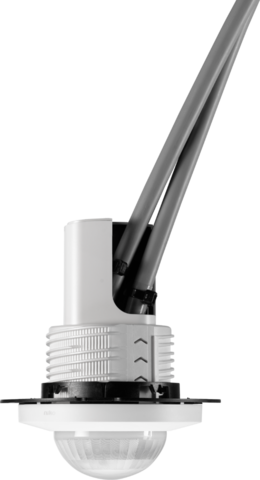

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 5-pol. connectors, white

Reference code
353-751421-2

This presence detector is a DALI-2 master for DALI lighting control in up to four dimmable zones. Lighting control can be overridden either via wireless and battery-free Bluetooth® push buttons or via 230 V push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is premounted with 2 cables and 5-pole female connectors that are each unique, which helps to avoid installation errors and save time.

The P48 DALI-2 master detector enables the following lighting control solutions in hallways, corridors, offices, classrooms and meeting rooms:

  • Human Centric Lighting (HCL)
  • tunable white
  • scenarios
  • multi-zone for a board light/smart board
  • wireless master/master link for adjacent areas control

Use the DALI-2 master P48 detector’s internal relay in combination with a distribution box (353-7080X) to enable the following lighting control functions:

  • HVAC control in combination with distribution box 353-70801 to accommodate the integration of HVAC systems
  • Control of non-dimmable ON/OFF lighting with distribution box 353-70802
  • Standby minimisation of DALI luminaires in combination with distribution box 353-70803 to save energy
  • Control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70806

The detection range can be extended with P46 DALI-2 secondary detectors with a 2 meter cable and a connector. Mind the maximum guaranteed current on the DALI bus.

Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.

Finishing colour: white

Compatible secondary detectors: 353-651021-1, 353-751021-1

Compatible controls: 360-21001

Specification description

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 5-pol. connectors, white.

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: DALI Broadcast/DALI Addressable
  • Maximum power consumption: 0.6 W
  • Maximum power consumption wireless link active: 0.65 W
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
  • Short circuit behaviour restart period: every 14 s until success
  • Maximum voltage on the DALI bus: 15 Vdc
  • Maximum guaranteed current on the DALI bus: 200 mA
  • Maximum supply current: 250 mA
  • Maximum startup time DALI: <1200 ms
  • Maximum PIR detection startup time: 1 min 10 s
  • Maximum number of control gear on the DALI bus: 64
  • Maximum number of dimmable zones: 4
  • Number of channels: 1 channel
  • Light intensity range: 20 lux – 2000 lux, ∞
  • Switch-off delay: pulse, 20 s – 2 h, ∞
  • Detection angle: 360°
  • Detection range (PIR): ø 37 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 10 A), potential-free
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
  • Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
  • Maximum load low voltage halogen lamps: 500 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum load LED driver: 500 VA
  • Maximum load electronic transformer: 500 VA
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 165 A/20 ms – 800 A/200 µs
  • Colour: white (approximately RAL 9010)
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
  • Protection degree: IP20
  • Impact resistance: IK04
  • Halogen-free: yes
  • Marking: CE
  • Cable specifications
    • cable colour: grey
    • length: 2 m
    • wire cross section: 1,5 mm²
    • voltage: 400 V
    • rated current: 16 A
    • halogen-free: yes
    • ambient temperature: -5 – +40C°
    • type of connector cable 1: male, 5-pole, light green
    • type of connector cable 2: male, 5-pole, pink
Technical datasheets
Technical manuals
Certificaten CE-Marking

WAGO WINSTA® distribution box, HVAC, P48 DALI-2

Reference code
353-70801

The distribution box allows you to integrate HVAC devices into your installation. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and HVAC systems are included. Each connector is unique, which helps to avoid installation errors and save time.

Finishing colour: black

Specification description

WAGO WINSTA® distribution box, HVAC, P48 DALI-2

  • Ambient temperature: -35 – +85 °C
  • Protection degree: IP20
  • Dimensions (HxWxD): 30 x 190 x 145 mm
  • Marking: CE
Technical datasheets
Technical manuals
Certificaten CE-Marking

WAGO WINSTA® distribution box, ON/OFF, P48 DALI-2

Reference code
353-70802

This distribution box supports control of non-dimmable luminaires. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies, 230 V push buttons and 230 V non-dimmable luminaries are included. Each connector is unique, which helps to avoid installation errors and save time.

Finishing colour: black

Specification description

WAGO WINSTA® distribution box, ON/OFF, P48 DALI-2

  • Ambient temperature: -35 – +85 °C
  • Protection degree: IP20
  • Dimensions (HxWxD): 30 x 190 x 145 mm
  • Marking: CE
Technical datasheets
Technical manuals
Certificaten CE-Marking

WAGO WINSTA® distribution box, standby minimisation, P48 DALI-2

Reference code
353-70803

This distribution box supports standby minimisation and ensures that the standby consumption of the connected DALI luminaries is set at 0 watts when no presence is detected in the room. It can be used in combination with P48 DALI-2 master detectors with two WAGO WINSTA® cables and connectors. Extend your installation with distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply. External connectors for 230 V power supplies and 230 V push buttons are included. Each connector is unique, which helps to avoid installation errors and save time.

Finishing colour: black

Specification description

WAGO WINSTA® distribution box, standby minimisation, P48 DALI-2

  • Ambient temperature: -35 – +85 °C
  • Protection degree: IP20
  • Dimensions (HxWxD): 30 x 190 x 145 mm
  • Marking: CE

Accessories

Technical datasheets
Certificaten CE-Marking

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Technical datasheets
Certificaten CE-Marking

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

Reference code
353-991992

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

  • Colour: black (approximately RAL 9005)
Technical datasheets
Certificaten CE-Marking

Lens cover for P4XLR,M4XLR and M4XHC detectors transparent (5 pieces)

Reference code
353-999879

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Specification description

Lens cover for P4XLR,M4XLR and M4XHC detectors transparent (5 pieces)

  • Dimensions (HxWxD): 34 x 53 x 53 mm
  • Weight: 2 g
