Presence detector P48LR, DALI-2, master, 32 – 37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 m cable with 5-pol. connector
This presence detector is a DALI-2 master for DALI lighting control in up to four zones. It can be controlled wirelessly by push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with a cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.
Use this P48 detector to enable the following lighting control functions in hallways, corridors, offices, classrooms and meeting rooms:
- Human Centric Lighting (HCL)
- tunable white
- four dimmable zones/light circuits
- light scenarios
- control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70806
- multi-zone for a board light/smart board
- master/master link for adjacent areas control
The range can be extended with up to ten P47 DALI-2 secondary detectors with a 2 meter cable and connector. Mind the maximum guaranteed current on the DALI-bus.
Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Product details

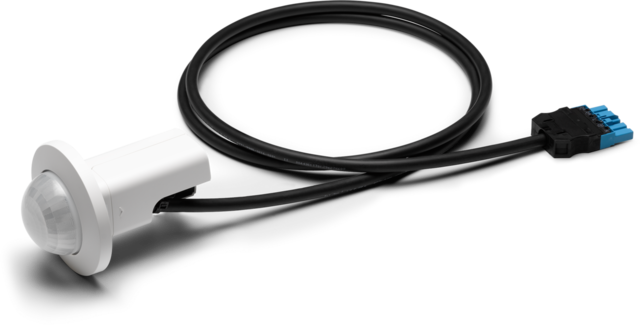

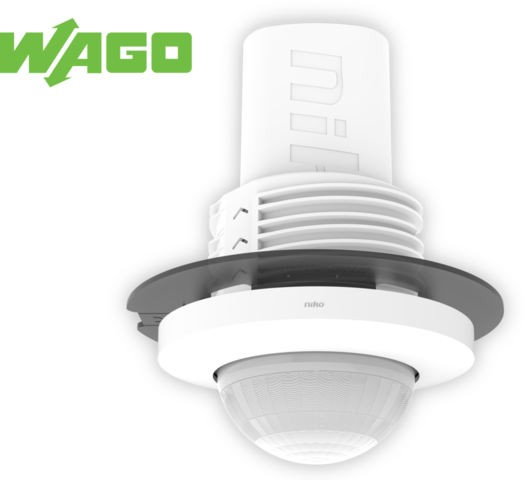

Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 m cable with 5-pol. connector, white
This presence detector is a DALI-2 master for DALI lighting control in up to four dimmable zones. Lighting control can be overridden via wireless and battery-free Bluetooth® push buttons. The detector settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication. The SnapFit mounting system guarantees fast and stable installation. The detector is prewired with a cable and a 5-pole female connector that is unique, which helps to avoid installation errors and save time.
Use this P48 DALI-2 master detector to enable the following lighting control solutions in hallways, corridors, offices, classrooms and meeting rooms:
- Human Centric Lighting (HCL)
- tunable white
- four dimmable zones
- scenarios
- control of non-dimmable luminaires externally on the DALI bus with distribution box 353-70806
- multi-zone for a board light/smart board
- master/master link for adjacent areas control
The detection range can be extended with P46 DALI-2 secondary detectors with a 2 meter cable and connector. Mind the maximum guaranteed current on the DALI bus.
Use distribution box 353-70804 to divide the power distribution to the DALI luminaires over two circuit breakers and achieve a higher security of supply.
Finishing colour: white
Compatible secondary detectors: 353-651021-1, 353-751021-1
Compatible controls: 360-21001
Specification description
Presence detector P48LR, DALI-2, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 m cable with 5-pol. connector, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: DALI Broadcast/DALI Addressable
- Maximum power consumption: 0.6 W
- Maximum power consumption wireless link active: 0.65 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum guaranteed current on the DALI bus: 200 mA
- Maximum supply current: 250 mA
- Maximum startup time DALI: <1200 ms
- Maximum PIR detection startup time: 1 min 10 s
- Maximum number of control gear on the DALI bus: 64
- Maximum number of dimmable zones: 4
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 20 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 37 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting (SnapFit)
- Drill diameter: 76 mm
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK04
- Halogen-free: yes
- Marking: CE
- Cable specifications
- cable colour: black
- length: 2 m
- wire cross-section: 1,5 mm²
- voltage: 400 V
- rated current: 16 A
- halogen-free: yes
- ambient temperature: -5 – +40C°
- type of connector: male, 5-pole, blue
Accessories
Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)
Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2
Specification description
Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

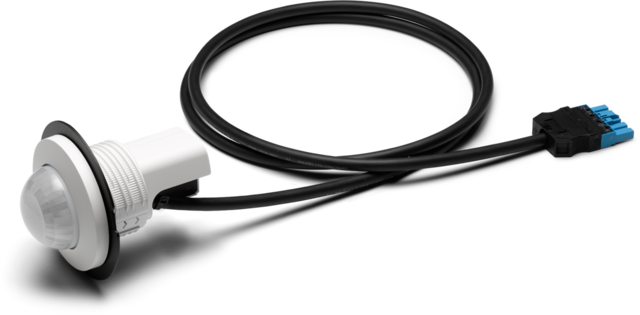

Deco ring for flush-mounted P4XLR and M4XLR detectors, black
Black (RAL 9005).
Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2
Specification description
Deco ring for flush-mounted P4XLR and M4XLR detectors, black
- Colour: black (approximately RAL 9005)
