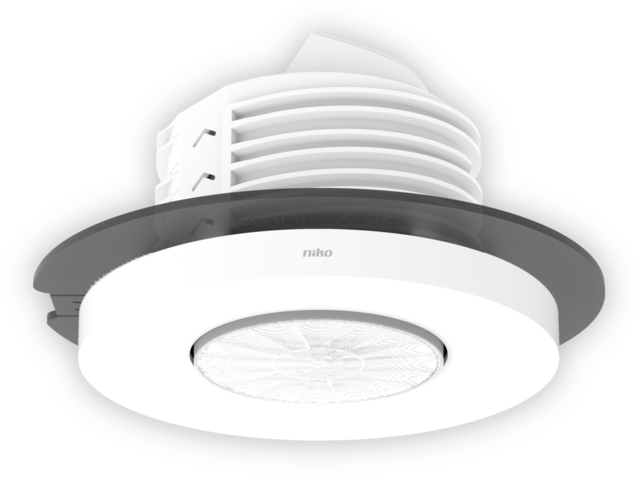

Presence detector P46MR, DALI-2, secondary - BMS, 12 – 13 m, for flush mounting (SnapFit)

This flat and discrete presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or can be part of a BMS system. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. If the detector is used as a secondary detector and connected to a DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Certificaten CE-Marking

Presence detector P46MR, DALI-2, secondary - BMS, 12 – 13 m, for flush mounting (SnapFit), white

Reference code
353-651021

This flat and discrete presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or can be part of a BMS system. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. If the detector is used as a secondary detector and connected to a DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Finishing colour: white

Compatible master detectors: 353-650321, 353-651321-1, 353-651421-1, 353-652321, 353-652421, 353-750321, 353-751321-1, 353-751421-1, 353-751421-2, 353-752321, 353-752421, 353-852411

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Presence detector P46MR, DALI-2, secondary - BMS, 12 – 13 m, for flush mounting (SnapFit), white.

  • Flat and discrete design
  • Easy installation thanks to the direct connection to the DALI bus
  • Communication with the master or BMS system via the DALI bus
  • Power supply via the DALI bus
  • SnapFit mounting bracket for easy and stable mounting in all types of suspended ceilings with or without removable tiles
  • Quick cabling using screwless and easily accessible plug-in terminals
  • Screwless strain relief and screwless installation of cable cover
  • User-friendly app for settings (iOS/Android) or BMS software
  • 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels)
    • event log keeps track of recent changes
  • Settings and configuration can be locked with a PIN-code

Technical data

  • Detector technology: PIR
  • Input voltage: via the DALI bus
  • Detector output: DALI-2
  • Maximum current consumption: 28.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 8.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 5 mA
  • Maximum startup time DALI: <1200 ms
  • Maximum PIR detection startup time: 1 min 10 s
  • Light intensity range: 0 lux – 10360 lux
  • Detection angle: 360°
  • Detection range (PIR): ø 12 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 120 x 120 x 66.4 mm
  • Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication - BMS software
  • Protection degree: IP20
  • Impact resistance: IK02
  • Halogen-free: yes
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen

Accessories

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

Reference code
353-990992

Black (RAL 9005).

Compatible articles: 353-600021, 353-600111, 353-600121, 353-601021, 353-601111, 353-601121, 353-601221, 353-650021, 353-650321, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2

Specification description

Deco ring for flush-mounted P4XMR and M4XMR detectors, black

  • Colour: black (approximately RAL 9005)
Technical datasheets
Certificaten CE-Marking

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)
