Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, for flush mounting (SnapFit)

This presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or as part of a BMS system. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. If the detector is used as a secondary detector and connected to a DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Certificaten CE-Marking

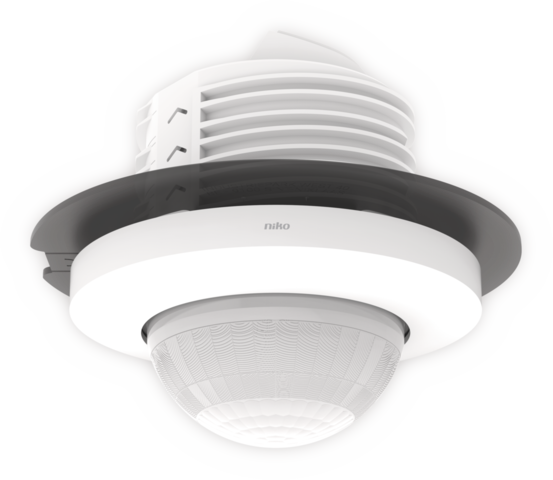

Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, for flush mounting (SnapFit), white

Reference code
353-751021

This presence detector is a DALI-2 secondary and BMS detector that extends the detection range of a DALI master detector or as part of a BMS system. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. If the detector is used as a secondary detector and connected to a DALI bus controlled by a DALI master detector, it will start communicating with this master detector without further commissioning. If it is connected to the DALI bus of a BMS system, the detector needs to be commissioned with the BMS software. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector or using the BMS software.

Finishing colour: white

Compatible master detectors: 353-650321, 353-651321-1, 353-651421-1, 353-652321, 353-652421, 353-750321, 353-751321-1, 353-751421-1, 353-751421-2, 353-752321, 353-752421, 353-852411

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Presence detector P46LR, DALI-2, secondary - BMS, 32-37 m, for flush mounting (SnapFit), white.

  • Easy installation thanks to the direct connection to the DALI bus
  • Communication with the master or BMS system via the DALI bus
  • Power supply via the DALI bus
  • SnapFit mounting bracket for easy and stable mounting in all types of suspended ceilings with or without removable tiles
  • Quick cabling using screwless and easily accessible plug-in terminals
  • Screwless strain relief and screwless installation of cable cover
  • User-friendly app for settings (iOS/Android) or BMS software
  • 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
  • Fitted with three PIR segments, each covering 120°
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels) in 3 x 120°
    • one or more PIR segments can be disabled
    • event log keeps track of recent changes
  • Settings and configuration can be locked with a PIN code

Technical data

  • Detector technology: PIR
  • Input voltage: via the DALI bus
  • Detector output: DALI-2
  • Maximum current consumption: 28.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® enabled: 8.1 mA
  • Nominal current consumption (12 V, 25°C), Bluetooth® disabled: 5 mA
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Maximum startup time DALI: <1200 ms
  • Maximum PIR detection startup time: 1 min 10 s
  • Light intensity range: 0 lux – 10360 lux
  • Detection angle: 360°
  • Detection range (PIR): ø 37 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Minimum flush-mounting depth: (wrong type for option)
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 120 x 120 x 99.1 mm
  • Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
  • Weight: 164 g
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication - BMS software
  • Protection degree: IP20
  • Impact resistance: IK04
  • Protection class: Class II device
  • Halogen-free: yes
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen

Accessories

Technical datasheets
Certificaten CE-Marking

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

Reference code
353-999879

This lens cover is designed to minimise the detection range of P4XLR, M4XLR and M4XHC detectors and prevent detection in a specific area. The lens cover can be adjusted to only conceal a particular area.

Please note: each package contains 5 pieces.

Specification description

Lens cover for P4XLR, M4XLR and M4XHC detectors transparent (5 pieces)

  • Dimensions (HxWxD): 34 x 53 x 53 mm
  • Weight: 2 g
Technical datasheets
Certificaten CE-Marking

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

Reference code
353-991992

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

  • Colour: black (approximately RAL 9005)
  • Weight: 14 g
Technical datasheets
Certificaten CE-Marking

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-651521, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2, 353-751521

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

  • Weight: 16 g
