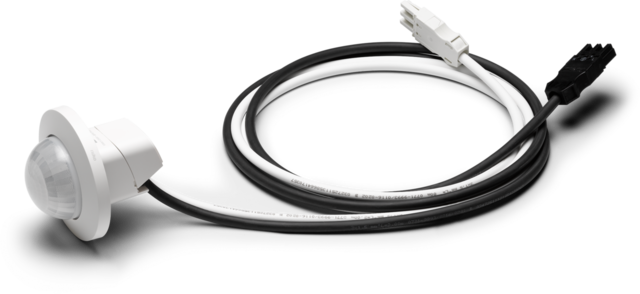

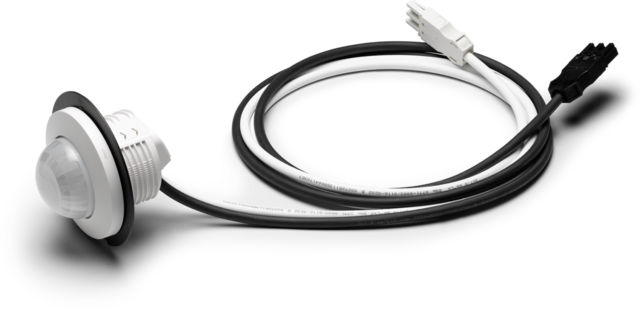

Presence detector P42LR, 230 V, master, 32 – 37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 3-pol. connectors

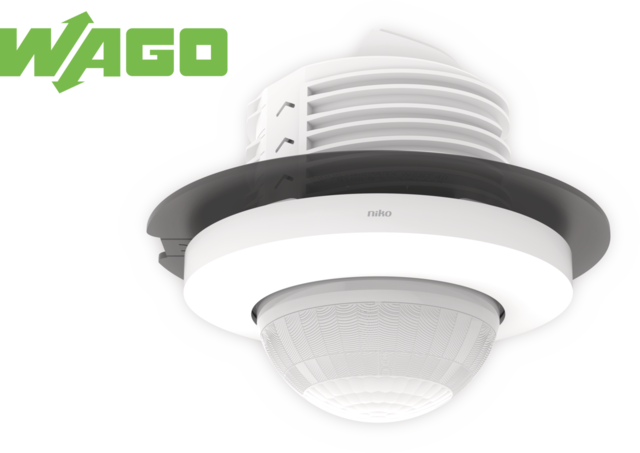

This presence detector is a single-channel master detector for automatic lighting control. The SnapFit mounting system guarantees fast and stable installation. Moreover, the detector is prewired with cables and 3-pole male and female connectors that are each unique, which helps to avoid installation errors and save time.
This P42 detector with two cables is suitable for ON/OFF lighting control in hallways, printer rooms, toilets and storage rooms. It is used in installations with standard daylight control applications, mainly with automatic ON/OFF function:
- Preprogrammed for automatic ON/OFF
- Preprogrammed settings can be changed via the Niko detector tool app and 2-way Bluetooth® communication (e.g. lux and switch-off time delay)
Lighting control can be overridden with a Bluetooth® push button.
Product details
Presence detector P42LR, 230 V, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 3-pol. connectors, white
This presence detector is a 1-channel master detector for automatic lighting control. The SnapFit mounting system guarantees fast and stable installation. The detector is premounted with 2 cables and 3-pole male and female connectors that are each unique, which helps to avoid installation errors and save time.
This P42 detector with two cables is suitable for lighting control in hallways, printer rooms, toilets and storage rooms. It is used in installations with standard daylight control applications, mainly with automatic ON/OFF function:
- Preprogrammed for automatic ON/OFF
- Preprogrammed settings can be changed via the Niko detector tool app and 2-way Bluetooth® communication (e.g. lux and switch-off time delay)
Lighting control can be overridden with a wireless and battery-free Bluetooth® push button.
Finishing colour: white
Compatible controls: 360-21001
Specification description
Presence detector P42LR, 230 V, master, 32-37 m, for flush mounting (SnapFit), WAGO WINSTA® MIDI 2 X 2 m cable with 3-pol. connectors, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum power consumption: 0.2 W
- Maximum MCB rating: 16 A (limited by national installation rules)
- Maximum number of secondary detectors: 10
- Number of channels: 1 channel
- Light intensity range: 20 lux – 2000 lux, ∞
- Switch-off delay: pulse, 15 s – 2 h, ∞
- Detection angle: 360°
- Detection range (PIR): ø 37 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting (SnapFit)
- Drill diameter: 76 mm
- Mounting height: 2 – 3.5 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Colour: white (approximately RAL 9010)
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
- Protection degree: IP20
- Impact resistance: IK04
- Halogen-free: yes
- Marking: CE
- Cable specifications
- cable colour wire 1: black
- cable colour wire 2: white
- length: 2 m
- wire cross section: 1,5 mm²
- voltage: 250 V
- rated current: 16 A
- halogen-free: yes
- ambient temperature: -5 – +40C°
- type of connector cable 1: male, 3-pole, black
- type of connector cable 2: female, 3-pole, white
