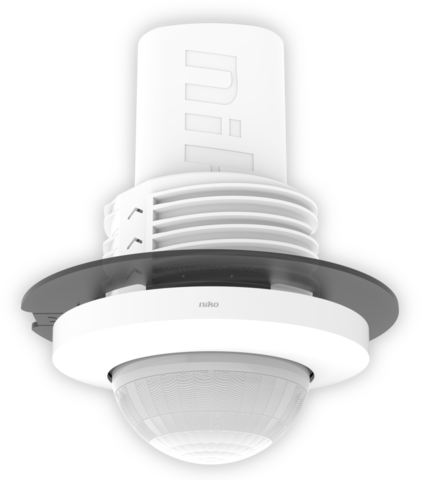

Presence detector P42LR, 230 V, master, 2 channels, 32 – 37 m, for flush mounting (SnapFit)

This presence detector is a 2-channel master detector with a large detection range for automatic lighting control. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Product details

This product consists of several components. Below you will find an overview of all the component parts.
Technical datasheets
Technical manuals
Certificaten CE-Marking

Presence detector P42LR, 230 V, master, 2 channels, 32 – 37 m, for flush mounting (SnapFit), white

Reference code
353-701221

This presence detector is a 2-channel master detector with a large detection range for automatic lighting control. The detector is fitted with multiple functions and can be controlled wirelessly by push buttons. The SnapFit mounting bracket ensures a quick and stable mounting in all types of suspended ceilings with or without removable tiles. The detector’s settings can be modified using the Niko detector tool app and 2-way Bluetooth® communication between a smartphone and the detector.

Finishing colour: white

Compatible secondary detectors: 353-600021, 353-601021, 353-602021, 353-700021, 353-701021, 353-702021, 353-802011

Compatible controls: 170-00005, 170-00015, 170-70015, 170-70005, 360-21001

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Presence detector P42LR, 230 V, master, 2 channels, 32 – 37 m, for flush mounting (SnapFit), white.

  • each channel can be set independently
  • SnapFit mounting bracket for easy and stable mounting in all types of suspended ceilings with or without removable tiles
  • Quick cabling using screwless and easily accessible plug-in terminals
  • Screwless strain relief and screwless installation of cable cover
  • User-friendly app for settings (iOS/Android)
  • 2-way Bluetooth® communication ensures quick modification of settings and live feedback in the app
  • Fitted with three PIR segments, each covering 120°
  • Pre-configured functions:
    • adjustable PIR sensitivity (4 levels) in 3 x 120°
    • one or more PIR segments can be disabled
    • event log keeps track of recent changes
  • Detection range can be increased using up to 10 secondary detectors
  • Wireless communication between master and secondary detectors with a repeater function
  • Robust potential-free relay
  • Automatic lighting control can be overridden with a 230 V push button - different options available
  • Settings and configuration can be locked with a PIN code
  • Web based portal solution for backing up and exchanging configuration files

Technical data

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum power consumption: 0.2 W
  • Maximum MCB rating: 16 A (limited by national installation rules)
  • Maximum number of secondary detectors: 10
  • Maximum number of Bluetooth® push buttons: 4
  • Number of channels: 2 channels
  • Light intensity range: 20 lux – 2000 lux, ∞
  • Switch-off delay: pulse, 15 s – 2 h, ∞
  • Detection angle: 360°
  • Detection range (PIR): ø 37 m from a height of 3 m
  • Ambient temperature: -25 – +40 °C
  • Mounting method: flush-mounting (SnapFit)
  • Drill diameter: 76 mm
  • Mounting height: 2 – 3.5 m
  • Usage: for indoor use only
  • Relay contact: 2 x N.O. (max. 10 A), potential-free
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
  • Maximum load fluorescent lamps (cosφ ≥ 0.9): 1200 VA
  • Maximum load low voltage halogen lamps: 500 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum load LED driver: 500 VA
  • Maximum load electronic transformer: 500 VA
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 165 A/20 ms – 800 A/200 µs
  • Colour: white (approximately RAL 9010)
  • Dimensions (HxWxD): 120 x 120 x 142.2 mm
  • Dimensions visible (HxWxD): 100 x 100 x 42.2 mm
  • Maximum range Bluetooth® (free field, depending on the device): 50 m
  • Operating frequency: 2.4 GHz
  • Maximum radio frequency power: -2 dBm
  • Modification of settings: Niko detector tool app (iOS-Android) and 2-way Bluetooth® communication
  • Protection degree: IP20
  • Impact resistance: IK04
  • Halogen-free: yes
  • Marking: CE

Accessories

Technical datasheets
Certificaten CE-Marking

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

Reference code
353-991992

Black (RAL 9005).

Compatible articles: 353-700021, 353-700111, 353-700121, 353-701021, 353-701111, 353-701121, 353-701221, 353-750021, 353-750321, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Deco ring for flush-mounted P4XLR and M4XLR detectors, black

  • Colour: black (approximately RAL 9005)
Technical datasheets
Certificaten CE-Marking

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)

Reference code
353-991901

Compatible articles: 353-601021, 353-601111, 353-601121, 353-601221, 353-651021, 353-651021-1, 353-651321-1, 353-651421-1, 353-651421-2, 353-701021, 353-701111, 353-701121, 353-701221, 353-751021, 353-751021-1, 353-751321-1, 353-751421-1, 353-751421-2

Specification description

Spring clips for flush-mounted P4XMR, P4XLR, M4XMR and M4XLR detectors (SnapFit)
