Flush mounting box with spring clips
Description
Flush-mounting box with spring clips for ceiling mounting of detectors
Compatible articles: 350-20056, 350-20065, 350-20066, 350-20070, 350-20071, 350-41730, 350-41734
Specification description
Flush mounting box with spring clips
Flush-mounting box for ceiling mounting of detectors. Provided with spring clips for easy mounting in false ceilings.
Related products:

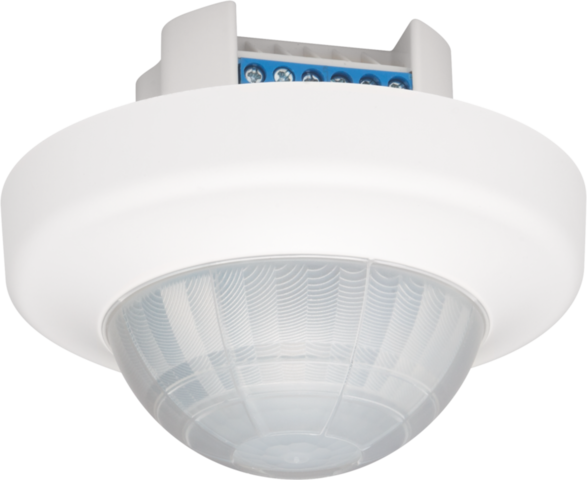

Presence detector, 230 V, master, 24 m, IP54, for flush-mounting box, white
This presence or absence detector with one channel (360°, 10 A) is suitable for flush mounting in ceilings and is used to switch indoor lighting on and off. The detector has a circular detection area with a diameter of up to 24 m that can be adjusted using the cover mask. The device with integrated light sensor can be set up as a presence or as an absence detector. When used as a presence detector, the lighting automatically switches on and off (as soon as the switch-off delay has elapsed). When used as an absence detector, the lighting must always be manually switched on first using an N.O. push button (to be ordered separately), after which it will be automatically switched off (as soon as the switch-off delay has elapsed). The device is also equipped with the ‘eco off’ function, which allows the user to switch the lighting off using a connected N.O. push button without having to wait for the switch-off delay. If the lighting is not switched off manually, it will be switched off automatically once the switch-off delay has elapsed. The device has an IP54 protection degree and a potential-free contact. The set-up can be performed manually on the device itself or via a remote control. The product can be used as a stand-alone unit or in combination with a maximum of ten secondary detectors. Finishing colour: white Compatible secondary detectors: 350-20071, 350-20079, 350-20081
Universal remote control for smartphone
The universal remote control is used for the configuration of detectors via a smartphone app. The Niko detector tool IR app is used to define settings and configuration and the universal remote control transmits the settings and configuration from the smartphone to the detector wirelessly. Compatible articles: 350-20056, 350-20070, 350-20072, 350-20078, 350-20080, 350-20082, 350-20085, 350-41600, 350-41620, 350-41650, 350-41657, 350-41659, 350-41680, 350-41750, 350-41751, 350-41752, 350-41753, 350-41760, 350-41761, 350-41762, 350-41763, 350-41780, 350-41781, 351-25050, 351-25065, 351-25340, 351-25451, 351-25457, 351-25463, 351-25467, 351-25475, 351-26450, 351-26470, 351-26480, 351-26560, 351-26562, 351-26570, 351-26572
IR remote control
This remote control is used for setting the presence or absence detectors (360°, 230 V, master) with one channel for flush mounting and for surface mounting via infrared transmission. The remote control allows the factory settings to be changed, including the daylight factor (lux value) and the time period during which the lighting remains on. Compatible articles: 350-20070, 350-20072, 350-20078, 350-20080, 350-20082
