Presence detector, 230 V, 20 m, for surface mounting
One-channel presence detector with daylight control for ceiling mounting, suitable for switching indoor lighting. Provided with an integrated light sensor. Automatically on/off (after switch-off delay) or manually on/off via N.O. push button (230 Vac) (to be ordered separately). The detection area can be subdivided by means of an adaptable cover mask.
Product details

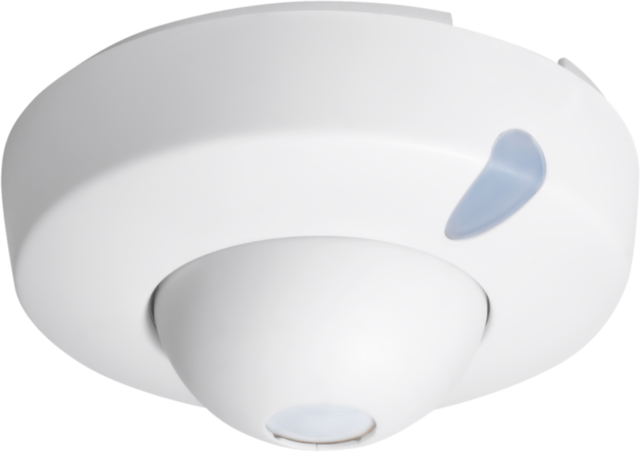

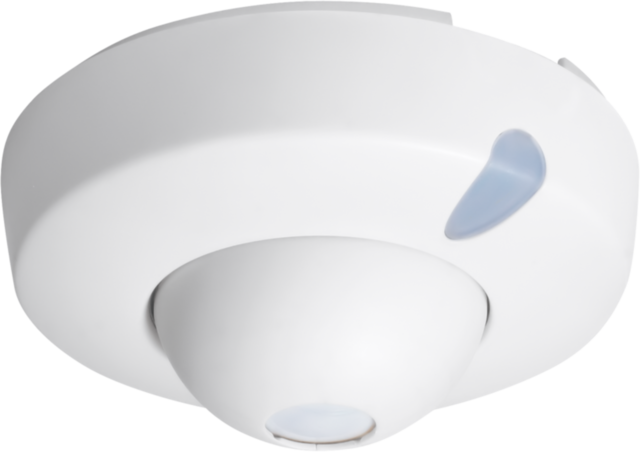

Presence detector, 230 V, 20 m, for surface mounting, white
This presence detector with one channel is suitable for ceiling mounting and is used to switch indoor lighting on and off. The detector has a circular detection area with a diameter of up to 20 m that can be adjusted using the cover mask. The device has a built-in light sensor and switches the lighting automatically on or off. Manual operation is also possible using the N.O. push button. After the pre-set time delay, the light is switched off automatically. The device has an IP20 protection degree and conforms to the European directive, EN 60669-2-1, for EMC and safety.
Finishing colour: white
Specification description
Presence detector, 230 V, 20 m, for surface mounting, white.
- Detector technology: PIR
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Detector output: 230 V (ON/OFF)
- Maximum MCB rating: 10 A (limited by national installation rules)
- Number of channels: 1 channel
- Light intensity range: 10 lux – 1000 lux
- Switch-off delay: 1 min – 30 min
- Detection angle: 360°
- Detection range (PIR): ø 20 m from a height of 3 m
- Ambient temperature: -5 – +50 °C
- Mounting method: surface mounting
- Mounting height: 2.5 – 3.4 m
- Usage: for indoor use only
- Relay contact: N.O. (max. 10 A)
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load low voltage halogen lamps: 500 W
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Dimensions (HxWxD): 127 x 127 x 59 mm
- Protection degree: IP20
- Protection class: Class II device
- Marking: CE
- Certification marks: SundaHus
