Corridor with night function

Daylight control in one zone in the corridor with orientation light

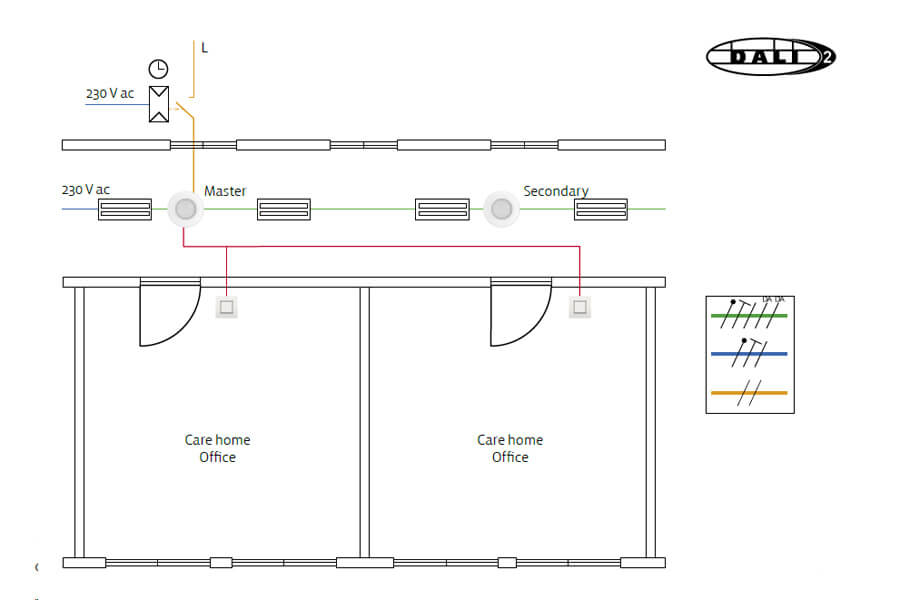

Principle for dimmable daylight in corridor with night function.

Functionalities

The installation has one zone for daylight control. All luminaires are equipped with DALI-2 drivers designed for dimming. In every care home is it possible to switch the light only on.

The solution changes between day and night mode. A twilight switch, time switch or a 1-pole switch can make changes. Day mode: The lighting automatically turns on at presence. The lighting is controlled by daylight control. Night mode: Daylight control is disconnected. The luminaires have a lighting level at presence e.g. 70% and another at non-presence e.g. 10% or the light can switch off, if no presence.

Both levels can be controlled between 1 and 100 % lighting.

The solution enables wireless communication between the detector and wireless and battery-free push-buttons, thus wiring to push-buttons in e.g. glass walls or partition walls is not necessary.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m: Master 353-752421, secondary 353-752021
• Surface mounted detector, 12-13 m: Master 353-652421, secondary 353-652021
• Wireless override option: Niko dimmer switch, Bluetooth®: 360-21001
