Niko Access Control - Digital - What cabling is best to use to implement my 2-wire access control?

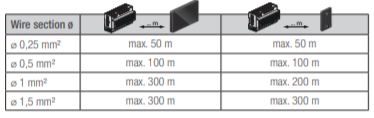

The contacts on the 2W devices are designed for cabling up to 1.5mm². See the table below for the cable section/length ratio.

It is recommended to use solid wires, which will make it easier to install the plug-in terminals. For connection to existing stranded cabling, it is recommended to tin the ends of the wires or to use wire sleeves.
