This article is (or will soon be) unavailable. It has been replaced by the following article(s):

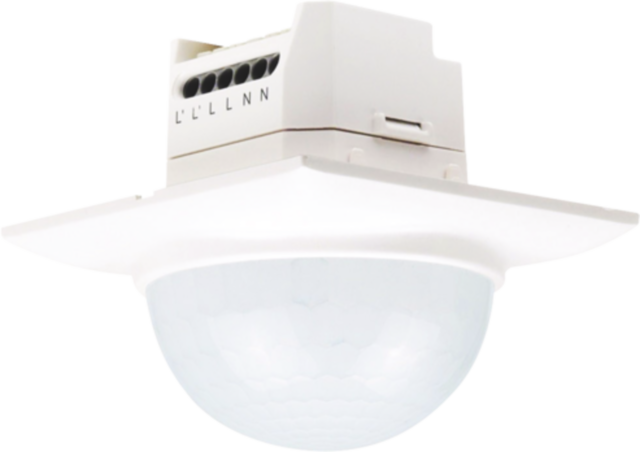

Presence detector, 230 V, master, 26 m, square, for flush-mounting box, white

Reference code
351-25466

No longer available since September 2019

Certificaten CE-Marking

Description

The presence or absence detector with one channel for flush mounting in ceilings is suitable for switching the indoor lighting on and off. The detector is equipped with an integrated light sensor. Automatic on/off (presence detector) or manual on/automatic off (absence detector) via a N.O. push button (230 Vac) (to be ordered separately).

Finishing colour: white

Specification description

Presence detector, 230 V, master, 26 m, square, for flush-mounting box, white.

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum MCB rating: 10 A (limited by national installation rules)
  • Number of channels: 1 channel
  • Light intensity range: 5 lux – 2000 lux
  • Switch-off delay: pulse, 10 s – 20 min
  • Detection angle: 360°
  • Detection range (PIR): ø 26 m from a height of 3 m
  • Ambient temperature: -20 – +40 °C
  • Mounting method: flush-mounting box
  • Drill diameter: 48 mm
  • Mounting height: 2 – 8 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 8.7 A)
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2000 W
  • Maximum load low voltage halogen lamps: 1000 W
  • Maximum load economy lamps (CFLi): 300 W
  • Maximum load LED lamps 230 V: 300 W
  • Dimensions (HxWxD): 88 x 88 x 86 mm
  • Dimensions visible (HxWxD): 50 mm
  • Protection degree: IP20
  • Protection class: Class II device
  • Marking: CE
