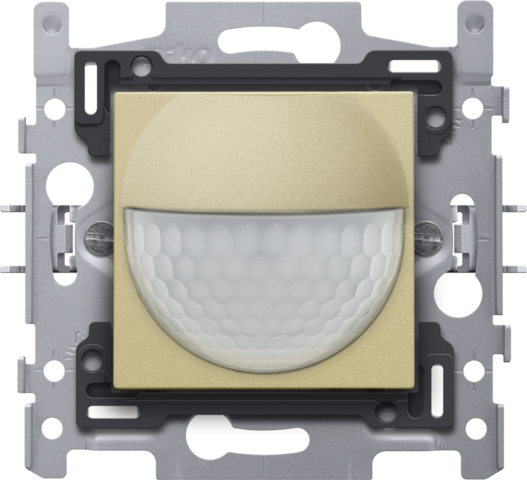

Motion detector, 230 V, 8 m, 180°, wall detector, for flush-mounting box, gold coated

Reference code
221-78010

Description

With this integrated indoor motion detector with a 10 A, 230 V switching contact, you have a viewing angle of 180° (horizontal) and 60° (vertical) within which all movement is detected. When a motion is detected, pre-selected lights are activated.

Finishing colour: gold coated

Compatible secondary detectors: XXX-78010

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Motion detector, 230 V, 8 m, 180°, wall detector, for flush-mounting box, gold coated.

  • Function: The motion detector has a detection angle of 180° horizontally, and 60° vertically within which all motion is detected. When a motion is detected, pre-selected lights are activated.
  • Colour: enamelled gold (approximately NCS S 3020 - Y, RAL 1000)
  • Connection terminals: 4 connection terminals
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1380 VA
  • Maximum load low voltage halogen lamps: 2300 W
  • Maximum MCB rating: 10 A (limited by national installation rules)
  • Light intensity range: 10 lux – 1000 lux
  • Ambient temperature: -5 – +45 °C
  • Mounting height: 0.8 – 1.2 m
  • Switch-off delay: 1 min – 30 min
  • Detection range (PIR): 8 m from a height of 1 m
  • Detection angle horizontal: 180°
  • Detection angle vertical: 60°
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Flush-mounting frame
    • 1 mm-thick metal
    • galvanized on all sides after cutting, even on the cut edges
    • with 4 grooves with screw hole of 7 mm
    • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
  • Fixing method
    • with claws that can be rotated open using screws with a slotted screw head (slot 0.8 x 5 mm), for mounting in a flush-mounting box with grip surfaces
    • depth of engagement of claws: 31 mm
    • claws turn back completely when loosened
  • Centre-to-centre distance
    • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
    • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
    • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
    • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
    • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
  • End border: The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate.
  • Wire connection
    • the sockets are equipped with screw terminals for clamping the wires.
  • Wire capacity
    • up to 2.5 mm² wire per terminal
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • An external push button or switch can be connected to the device.
  • You can also turn lighting on and off manually with the push button on the unit. After four hours the light switches off automatically.
  • Protection degree: IP20
  • Protection degree: IP40 for the combination of a mechanism and faceplate
  • Dimensions (HxWxD): 71 x 73 mm
  • Marking: CE
