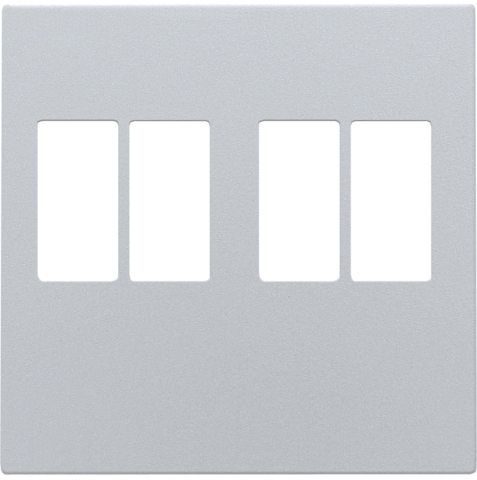

Finishing set for double speaker connection, sterling coated

Reference code
Technical datasheets
Certificaten CE-Marking


Central plate with double speaker inputs. Finishing colour: sterling coated.

Specification description

Finishing set for double speaker connection, sterling coated.

  • Function: The central plate is clicked onto the base of the double speaker connection. The central plate has 4 openings: two for the red connection terminals and two for the black connection terminals.
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: enamelled sterling (approximately NCS S 4000 - N, RAL 9007)
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
Alternative colors

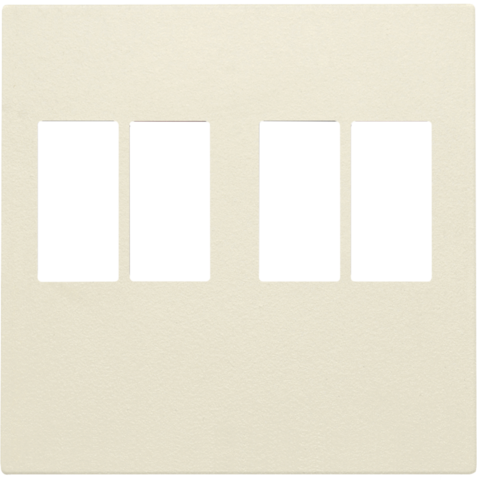

  • 100-69701
    Colour cream
    Reference code 100-69701
  • 101-69701
    Colour white
    Reference code 101-69701
  • 102-69701
    Colour light grey
    Reference code 102-69701
  • 121-69701
    Colour sterling coated
    Reference code 121-69701

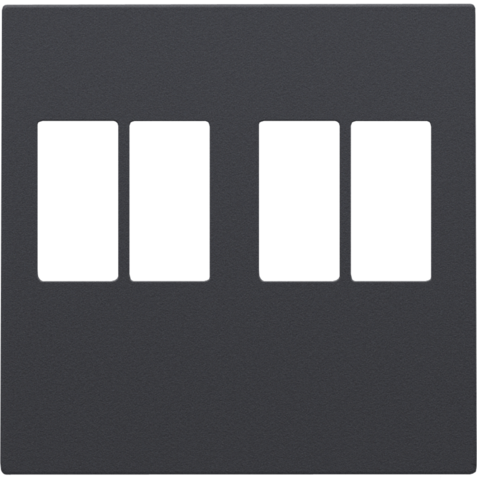

  • 122-69701
    Colour anthracite coated
    Reference code 122-69701
  • 123-69701
    Colour bronze coated
    Reference code 123-69701

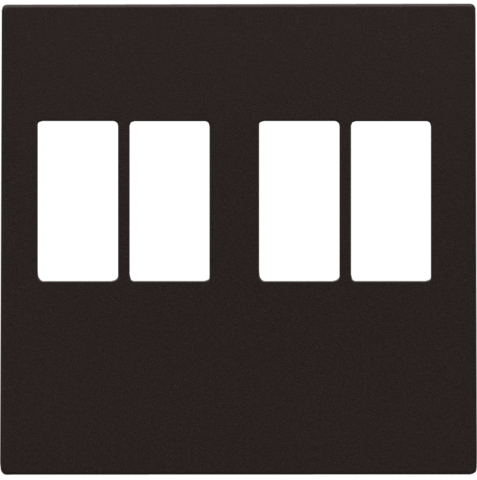

  • 124-69701
    Colour dark brown coated
    Reference code 124-69701

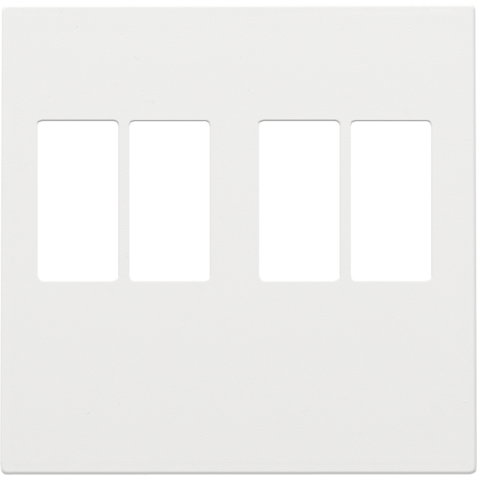

  • 154-69701
    Colour white coated
    Reference code 154-69701
  • 157-69701
    Colour champagne coated
    Reference code 157-69701
  • 161-69701
    Colour black coated
    Reference code 161-69701

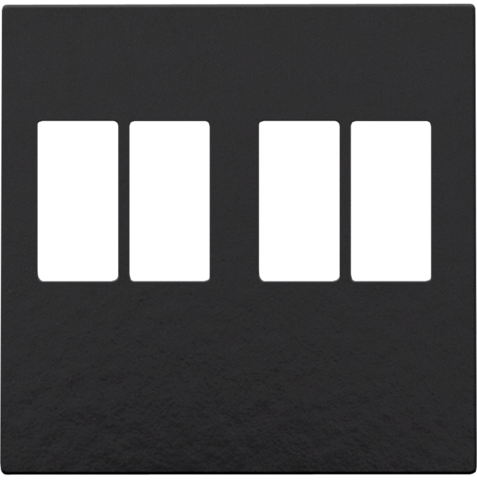

  • 200-69701
    Colour piano black coated
    Reference code 200-69701

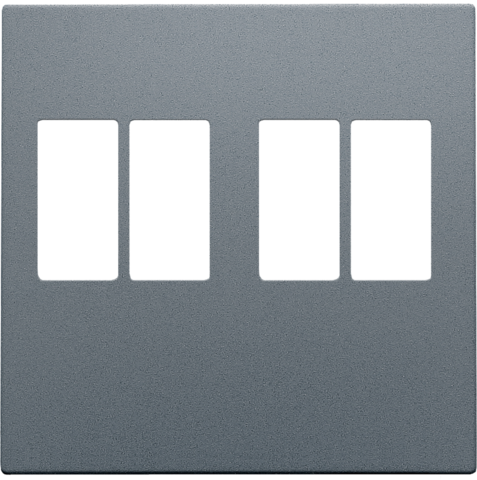

  • 220-69701
    Colour blue grey coated
    Reference code 220-69701

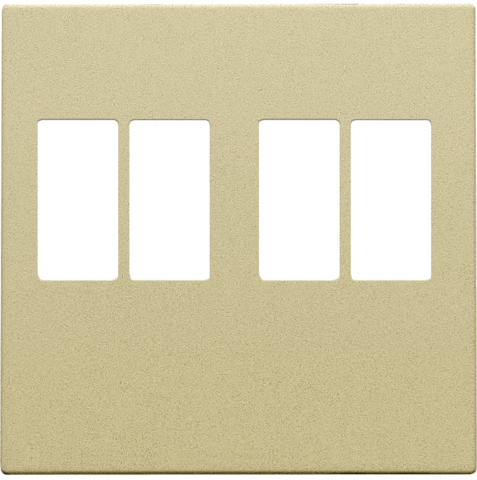

  • 221-69701
    Colour gold coated
    Reference code 221-69701

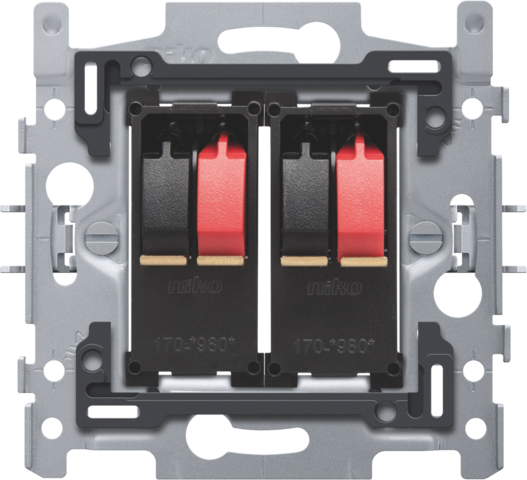

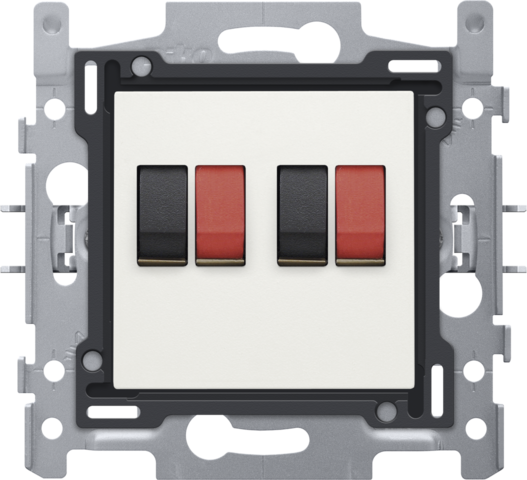

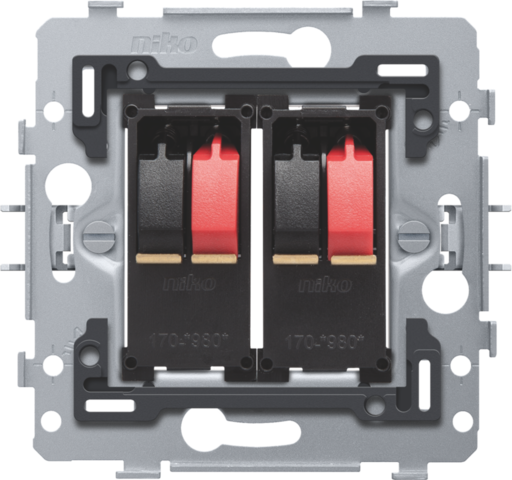

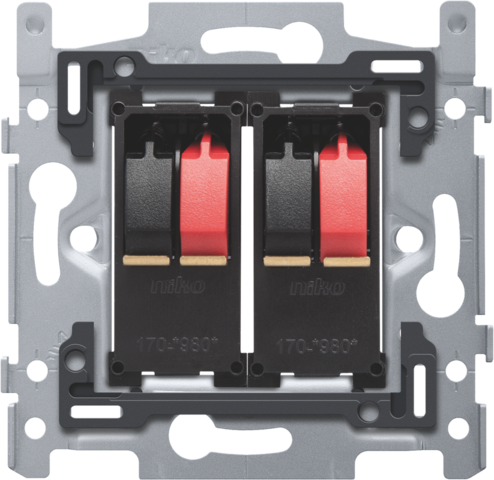

The article above is part of this product:
