1 RJ45 connection STP Cat. 6, PoE++ ready, flat model

This socket outlet with one RJ45 connection point STP Cat. 6, PoE++ ready, flat model is used to make a network connection with one device for telephone, Ethernet, IP, PoE or internet applications. Incl. adapter 9.1 and one connector.

Product details

This product consists of several components. Below you will find an overview of all the component parts.

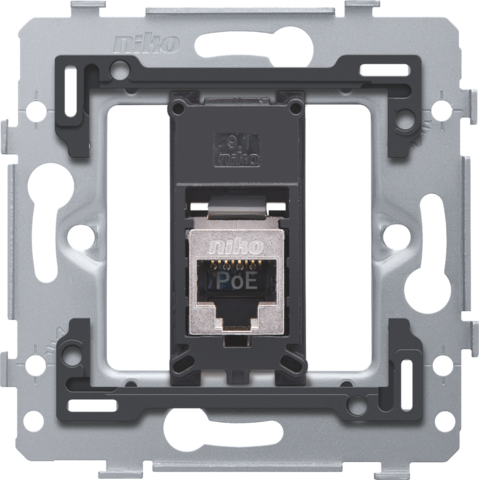

1 RJ45 connection STP Cat. 6, PoE++ ready, flat model, incl. base 60 x 71 mm with claw fixing

Reference code
170-66166

This mechanism with 1 RJ45 connection point STP Cat. 6, PoE++ ready, flat model, is used to make a network connection with 1 device for telephone, Ethernet, IP, PoE or internet applications. Due to its high quality, this type also offers the possibility to transmit TV distribution signals for analogue, digital and interactive TV images. The mechanism is connected in a star configuration to the central connection cabinet using a cable of the same performance type. The shielding ensures a more malfunction-resistant connection. The base has internal dimensions of 45 x 45 mm and external dimensions of 60 x 71 mm and is equipped with claw fixing. A PoE adapter is required to transport both data and power via the connector. A PoE adapter can be both a PoE injector or a PoE splitter. A finishing set in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

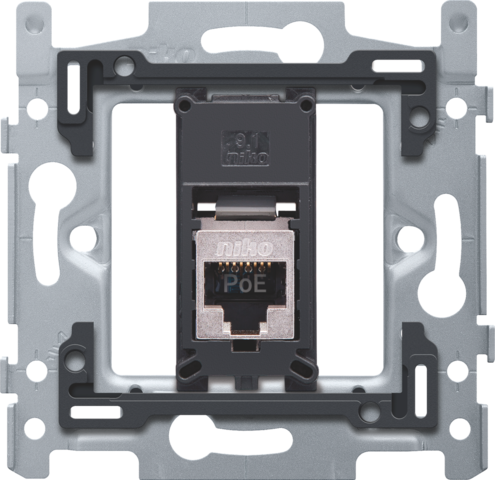

1 RJ45 connection STP Cat. 6, PoE++ ready, flat model, incl. base 60 x 71 mm with screw fixing

Reference code
170-66266

This mechanism with 1 RJ45 connection point STP Cat. 6, PoE++ ready, flat model, is used to make a network connection with 1 device for telephone, Ethernet, IP, PoE or internet applications. Due to its high quality, this type also offers the possibility to transmit TV distribution signals for analogue, digital and interactive TV images. The mechanism is connected in a star configuration to the central connection cabinet using a cable of the same performance type. The shielding ensures a more malfunction-resistant connection. The base has internal dimensions of 45 x 45 mm and external dimensions of 60 x 71 mm and is equipped with screw fixing. A PoE adapter is required to transport both data and power via the connector. A PoE adapter can be both a PoE injector or a PoE splitter. A finishing set in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

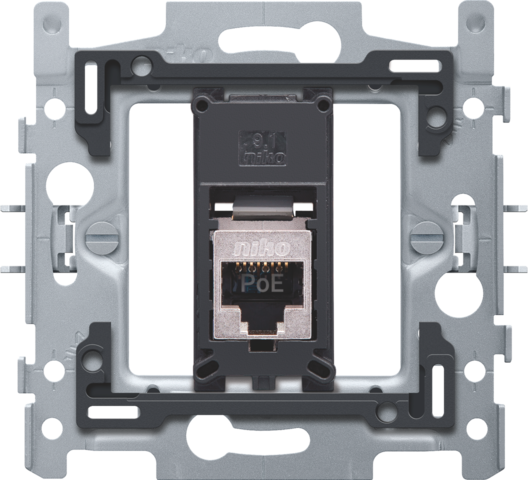

1 RJ45 connection STP Cat. 6, PoE++ ready, flat model, incl. base 71 x 71 mm with screw fixing

Reference code
170-79266

This mechanism with 1 RJ45 connection point STP Cat. 6, PoE++ ready, flat model, is used to make a network connection with 1 device for telephone, Ethernet, IP, PoE or internet applications. Due to its high quality, this type also offers the possibility to transmit TV distribution signals for analogue, digital and interactive TV images. The mechanism is connected in a star configuration to the central connection cabinet using a cable of the same performance type. The shielding ensures a more malfunction-resistant connection. The base has internal dimensions of 45 x 45 mm and external dimensions of 71 x 71 mm and is equipped with screw fixing. A PoE adapter is required to transport both data and power via the connector. A PoE adapter can be both a PoE injector or a PoE splitter. A finishing set in the colour of your choice must be ordered separately.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Central plate data 1x RJ, cream

Reference code
100-65100

Central plate for 1 RJ connection UTP Cat. 5E in a flat model. Finishing colour: cream.

  • 100-65100
    Colour cream
    Reference code 100-65100
  • 101-65100
    Colour white
    Reference code 101-65100
  • 102-65100
    Colour light grey
    Reference code 102-65100
  • 121-65100
    Colour sterling coated
    Reference code 121-65100
  • 122-65100
    Colour anthracite coated
    Reference code 122-65100
  • 123-65100
    Colour bronze coated
    Reference code 123-65100
  • 124-65100
    Colour dark brown coated
    Reference code 124-65100
  • 154-65100
    Colour white coated
    Reference code 154-65100
  • 157-65100
    Colour champagne coated
    Reference code 157-65100
  • 161-65100
    Colour black coated
    Reference code 161-65100
  • 200-65100
    Colour piano black coated
    Reference code 200-65100
  • 220-65100
    Colour blue grey coated
    Reference code 220-65100
  • 221-65100
    Colour gold coated
    Reference code 221-65100

Accessories

DIN-rail module with shielded RJ45 connector STP Cat. 6, PoE++ ready, for the central mounting of an RJ connection point in the connection cabinet

Reference code
650-14567

This DIN-rail module with shielded RJ45 connector STP Cat. 6, PoE++ ready is used to centrally mount an RJ connection point in the connection cabinet. This connection point is used to make a network connection with 1 device for telephone, Ethernet, IP, PoE or internet applications. Due to its high quality, this type also offers the possibility to transmit TV distribution signals for analogue, digital and interactive TV images. The DIN connector is connected in a star configuration to the mechanism using a cable of the same performance type. This provides a central overview of all connection points throughout the entire residence. A PoE adapter is required to transport both data and power via the connector. A PoE adapter can be both a PoE injector or a PoE splitter. A finishing set in the colour of your choice must be ordered separately.

Specification description

DIN-rail module with shielded RJ45 connector STP Cat. 6, PoE++ ready, for the central mounting of an RJ connection point in the connection cabinet

  • Service: 4PPoE
  • PoE standard: IEEE 802.3BT Type 4
  • Maximum power Component (at PD): 72 W
  • Maximum power Source (at PSE): 100 W
  • Voltage range (at PSE): 50.0-57.0 V
  • Voltage range (at PD): 42.5-57 V
  • Maximum current: 860 mA
  • Pairs with current: 4
  • Maximum cable resistance per pair set: 12.5 Ω
  • Power management: Three power class levels negotiated by signature or 0.1 W steps negotiated by LLDP
  • Derating of maximum cable ambient operating temperature: 10 °C (20 °F) with more than half of bundled cables at Imax
  • Supported cabling: Category 5
  • Supported modes: Mode A, Mode B, 4-pair mode
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Marking: CE
