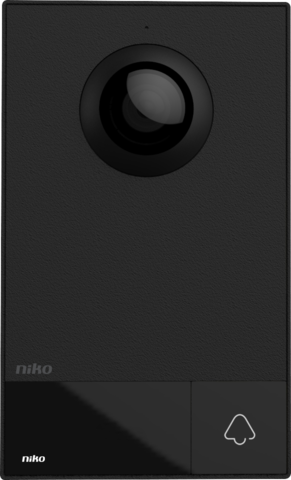

Compact 2-wire external video unit
This compact external video unit is equipped with an HD colour camera, microphone and loudspeaker. The camera with integrated infrared LEDs provides better visibility at night (razor-sharp black and white image). You can personalise the unit with a nameplate (optionally in engravable PMMA plastic). The maintenance-free push-button contacts guarantee a long lifespan. The door locks can be connected to the access control module (recommended) or directly to the external video unit.
You can receive calls from your external video unit on your smartphone via the Niko access control app (Android or iOS).
This external video unit requires the access control module (510-214X0) to supply its power. Complete your access control system with the internal video unit (510-50000).
Product details
Compact 2-wire external video unit
This compact external video unit is equipped with an HD colour camera, microphone and loudspeaker. The camera with integrated infrared LEDs provides better visibility at night (razor-sharp black and white image). You can personalize the unit with a name plate (optionally in engravable PMMA plastic). The maintenance-free push-button contacts guarantee a long lifespan. The door locks can be connected to the access control module (recommended) or directly to the external video unit.
You can receive calls from your external video unit on your smartphone via the Niko access control app (Android or iOS).
This external video unit requires the access control module (510-214X0) to supply its power. Complete your access control system with the internal video unit (510-50000).
Specification description
Compact 2-wire external video unit.
- Camera resolution: 2 MP
- IR range: 3 m
- Maximum number of door locks: 2
- Door lock with 12 Vac – 1 A
- Door lock relay: 24 V – 1 A
- Mounting method: surface mounting
- Microphone: volume and microphone sensitivity can be adjusted manually
- Wiring technique: 2 wire
- Finishing colour: black
- Protection degree: IP54
- Dimensions (HxWxD): 181.4 x 109.4 x 31.1 mm
- Marking: CE
Accessories
Replacement nameplate + removal tool, for 2-wire external video unit with 1 bell button
The name plate is suitable for variable weather conditions. You can personalize your external video unit by having your name engraved on the PMMA plate or affixing paper identification behind the durable plastic cover. Both are easily attached with the adhesive or later removed with the tool provided.
Specification description
Replacement nameplate + removal tool, for 2-wire external video unit with 1 bell button
- Marking: CE
