This article is (or will soon be) unavailable. It has been replaced by the following article(s):

This detector has been replaced with a certified DALI-2 detector, which offers improved efficiency and functionality and ensures compatibility with the latest industry standards. The new DALI-2 detector is equipped with Bluetooth®, allowing effortless commissioning via smartphone.

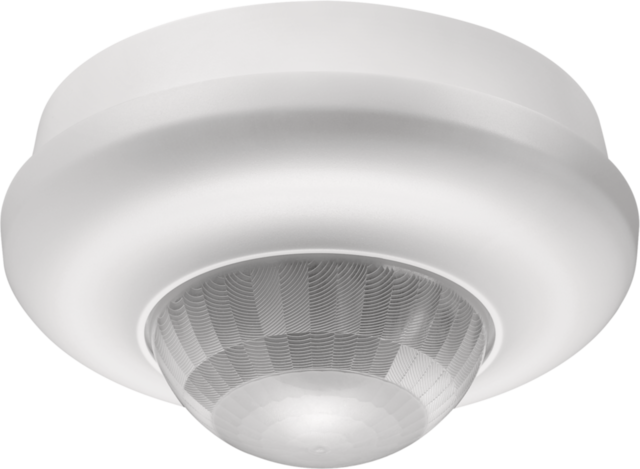

Motion detector, DALI, secondary, 32 m, IP54, for high ceilings, for surface mounting, white

Reference code
350-41763

This product is available while stocks last.

Technical datasheets
Technical manuals
EU declaration of conformity

Description

This motion detector (DALI daylight control, secondary) is suitable for surface-mounting on ceilings with a height of 4 – 8 m and can only be used in combination with a master to increase its detection range. The device follows the settings of the master. The sensitivity of the secondary detector, though, can be set separately. A maximum of ten secondary detectors can be connected per master.

Finishing colour: white

Compatible master detectors: 350-41750, 350-41751, 350-41760, 350-41761, 350-41780, 350-41781

Specification description

Motion detector, DALI, secondary, 32 m, IP54, for high ceilings, for surface mounting, white.

  • Detector technology: PIR
  • Input voltage: via the DALI bus
  • Detection angle: 360°
  • Detection range (PIR): ø 32 m from a height of 8 m
  • Ambient temperature: -5 – +50 °C
  • Mounting method: surface mounting
  • Mounting height: 4 – 8 m
  • Usage: for indoor use only
  • Dimensions (HxWxD): 117.3 x 117.3 x 64.1 mm
  • Protection degree: IP54
  • Impact resistance: IK04
  • Marking: CE
  • Certification marks: SundaHus, Byggvarubedömningen
