Conference room with scenarios

Daylight control in three zones, on/off lighting control in one zone, scenarios, power cut-off to selected wall sockets

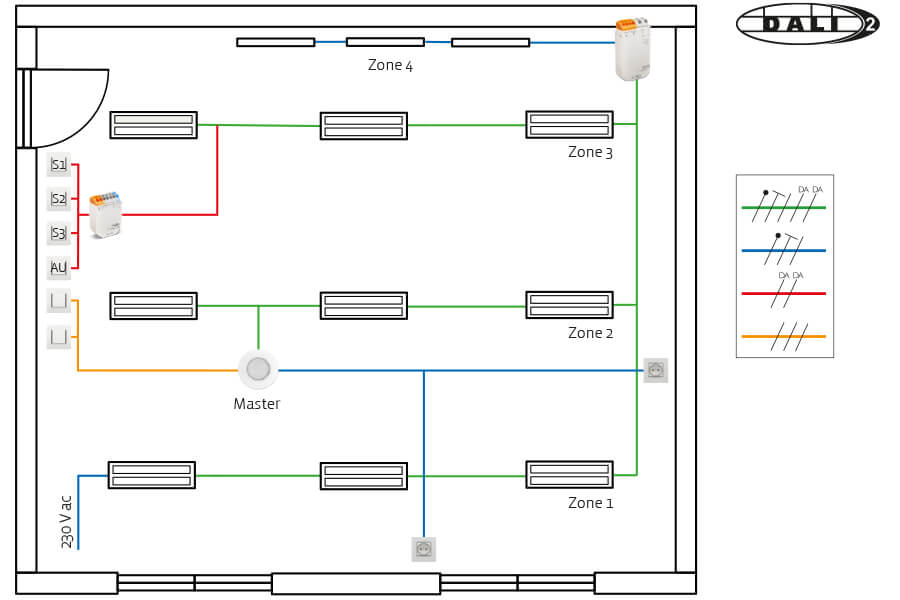

Principle for conference rooms with dimmable daylight control in three zones, On/Off lighting in one zone, cut of power to selected wall sockets and pushbuttons for operating scenarios.

Functionalities

The installation has three zones for daylight control and a zone controlled by an external DALI-2 relay. The luminaires in the daylight zones are equipped with DALI-2 drivers designed for dimming. The luminaires in zone 4 are are not equipped with dimmable DALI drivers.

The detector’s internal relay is used to cut power to selected sockets to eliminate standby consumption to the connected devices whenever there is no-one in the room. An external DALI-2 relay is used to control the on/off zone 4.

The lighting can either turn on automatically at presence or manually by operating the 230 V push-buttons. The light will switch off after the adjusted period of time after the last person has left the room. Daylight control can be overridden via push-button. Various lighting scenarios can be programmed, up to 16 and activated by operating a push-button. Daylight control can be resumed operating a push-button.

The solution enables wireless communication between the detector and wireless and battery-free push-buttons, thus wiring to push-buttons in e.g. glass walls or partition walls is not necessary.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021

• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021

• Surface mounted detector, 32-37 m: Master 353-752421, secondary 353-752021

• Surface mounted detector, 12-13 m: Master 353-652421, secondary 353-652021

• Wireless override option: Niko dimmer switch, Bluetooth®: 360-21001
