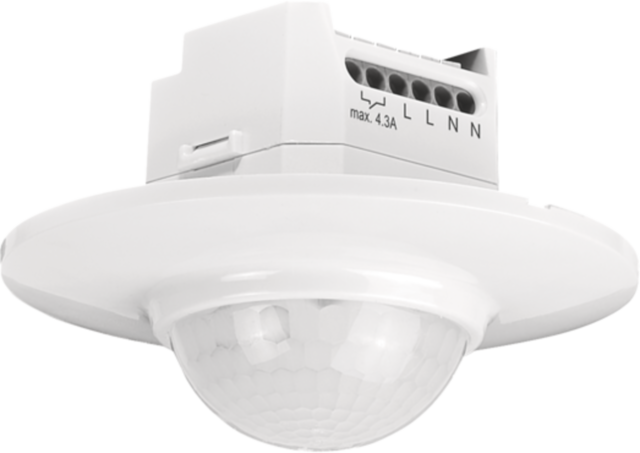

Presence detector, 230 V, master, 14 m, with potential-free contact, round, for flush-mounting box, white

Reference code
351-25463
Technical datasheets
Technical manuals
Certificaten CE-Marking

Description

The presence or absence detector with one channel for flush-mounting in ceilings is suitable for switching various loads via the potential-free contact. The detector is equipped with an integrated light sensor. Automatic on/off (presence detector) or manual on/automatic off (absence detector) via a N.O. push button (230 Vac) (to be ordered separately).

Finishing colour: white

Compatible secondary detectors: 351-25459, 351-25469

Specification description

Presence detector, 230 V, master, 14 m, with potential-free contact, round, for flush-mounting box, white.

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum MCB rating: 10 A (limited by national installation rules)
  • Number of channels: 1 channel
  • Light intensity range: 5 lux – 2000 lux
  • Switch-off delay: pulse, 10 s – 20 min
  • Detection angle: 360°
  • Detection range (PIR): ø 14 m from a height of 3 m
  • Ambient temperature: -20 – +40 °C
  • Mounting method: flush-mounting box
  • Drill diameter: 48 mm
  • Mounting height: 2 – 6 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 5 A), potential-free
  • Maximum load incandescent and halogen lamps (cosφ = 1): 1000 W
  • Maximum load low voltage halogen lamps: 500 W
  • Maximum load economy lamps (CFLi): 100 W
  • Maximum load LED lamps 230 V: 100 W
  • Dimensions (HxWxD): 105 x 105 x 71 mm
  • Dimensions visible (HxWxD): 105 x 105 x 35 mm
  • Protection degree: IP20
  • Protection class: Class II device
  • Marking: CE
