This article is (or will soon be) unavailable. It has been replaced by the following article(s):

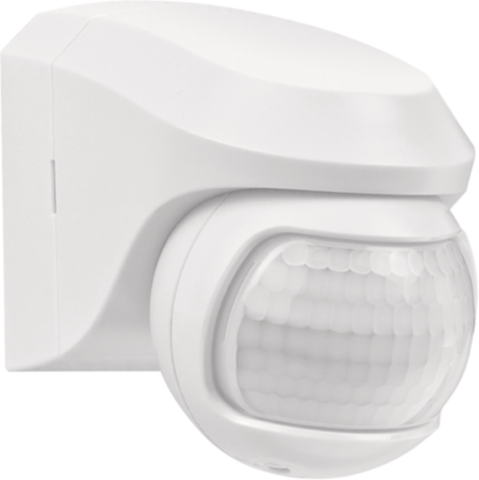

Outdoor motion detector 140°, 230 V, 11 m, white

Reference code
351-03140

Available until the end of the second quarter of 2022 and afterwards until the end of stock.

Technical datasheets
Certificaten CE-Marking

Description

This 1-channel outdoor motion detector is suitable for use in a driveway or garden. The detection range is 11 metres. The detection area can be divided using an adjustable cover mask. The motion sensor can be precisely aimed. The device has a built-in light sensor and switches the lighting on automatically or manually with an N.G. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically.

Finishing colour: white

Specification description

Outdoor motion detector 140°, 230 V, 11 m, white.

  • Detector technology: PIR
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Number of channels: 1 channel
  • Light intensity range: 5 lux – 1000 lux
  • Switch-off delay: pulse, 30 s – 15 min
  • Detection angle: 140°
  • Detection range (PIR): 11 m from a height of 3 m
  • Ambient temperature: -20 – +55 °C
  • Mounting method: surface mounting
  • Mounting height: 2 – 4 m
  • Usage: for outdoor use
  • Maximum load incandescent and halogen lamps (cosφ = 1): 1000 W
  • Maximum load low voltage halogen lamps: 500 W
  • Maximum load economy lamps (CFLi): 100 W
  • Maximum load LED lamps 230 V: 100 W
  • Dimensions (HxWxD): 70 x 100 x 100 mm
  • Dimensions visible (HxWxD): 100 x 70 x 100 mm
  • Modification of settings: Potentiometers
  • Protection degree: IP44
  • Protection class: Class II device
  • Marking: CE
