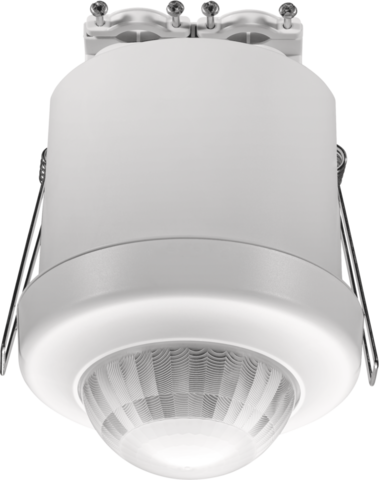

Motion detector, DALI, master, 32 m, IP54, for high ceilings, for flush mounting, white

This motion detector (DALI daylight control, master) is designed for flush-mounting in ceilings of 4 - 8 m. Standalone or as master combinable with a maximum of 10 secondary detectors. All-in-one detector installed in a quick and flexible manner thanks to the addressable DALI bus. Manual control per zone via push button. For use in storage areas, sports halls .. The detector has 2 or 3 daylight controlled zones and 1 or 2 secondary zones with on/off or dimming functionality. The detector is equipped with a potential-free relay contact for control of either light, HVAC or cut-off of voltage to the DALI luminaires.

There are four optional applications:

• mode 1: daylight control in 2 or 3 zones (DALI), 1 or 2 secondary zones (DALI) and the built-in relay contact is used for the switching of HVAC.
• mode 2: daylight control in 2 or 3 zones (DALI) and a 4th zone to switch the lighting on or off via the built-in relay contact.
• mode 3: daylight control in 2 or 3 zones (DALI), 1 or 2 secondary zones (DALI) and the built-in relay contact is used for switching off the 230 V power supply of the control gear (minimum consumption in standby).
• mode 4: daylight control in up to 3 zones for corridors with day/night mode and relay output for HVAC.

The detector is programmed using the (optional) remote control 350-41934. With the (optional) remote control 350-41935 for users, you control the luminaires in the zones simultaneously or separately.

Finishing colour: white

Compatible secondary detectors: 350-41752, 350-41753, 350-41762, 350-41763

Motion detector, DALI, master, 32 m, IP54, for high ceilings, for flush mounting, white.

• Input voltage: 230 Vac ± 10 %, 50 Hz
• Detector output: DALI Addressable
• Maximum MCB rating: 10 A (limited by national installation rules)
• Maximum number of dimmable zones: 4
• Number of channels: 1 channel
• Light intensity range: 100 lux – 2000 lux
• Switch-off delay: 5 min – ∞
• Detection angle: 360°
• Detection range (PIR): ø 32 m from a height of 8 m
• Ambient temperature: -5 – +50 °C
• Mounting method: flush-mounting
• Drill diameter: 88.5 mm
• Mounting height: 4 – 8 m
• Usage: for indoor use only
• Relay contact: N.O. (max. 10 A), potential-free
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load low voltage halogen lamps: 500 W
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Maximum load LED driver: 500 VA
• Maximum load electronic transformer: 500 VA
• Maximum capacitive load: 140 µF
• Maximum switching current: 165 A/20 ms – 800 A/200 µs
• Dimensions (HxWxD): 100 x 100 x 136.4 mm
• Dimensions visible (HxWxD): 100 x 100 x 46.4 mm
• Protection degree: IP54
• Marking: CE
• Certification marks: SundaHus, Byggvarubedömningen
