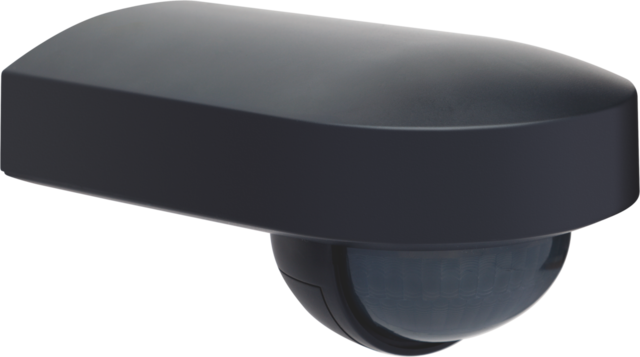

Motion detector, 230 V, 13 m, 180°, IP54, with orientable lens, for surface mounting, anthracite

Reference code
350-20150

Description

This 1-channel outdoor motion detector is especially suitable for use in a driveway or garden. The detection range can be set to between 0 and 13 m. The detection area can be divided using an adjustable protection mask. The motion sensor can be precisely aimed. The device has a built-in light sensor and switches the lighting on automatically or manually with an N.G. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically. This motion detector has an IP54 protection degree and complies with the European directives for EMC and safety, EN 60669-2-1.

Finishing colour: anthracite

Specification description

Motion detector, 230 V, 13 m, 180°, IP54, with orientable lens, for surface mounting, anthracite.

  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Maximum MCB rating: 10 A (limited by national installation rules)
  • Number of channels: 1 channel
  • Light intensity range: 5 lux – ∞
  • Switch-off delay: 8 s – 30 min
  • Detection angle: 180°
  • Detection range (PIR): 13 m from a height of 3 m
  • Ambient temperature: -20 – +45 °C
  • Mounting method: surface mounting
  • Mounting height: 2 – 3 m
  • Usage: for outdoor use
  • Relay contact: N.O. (max. 10 A)
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load low voltage halogen lamps: 1200 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 165 A/20 ms – 800 A/200 µs
  • Dimensions (HxWxD): 70 x 90 x 130 mm
  • Dimensions visible (HxWxD): 70 x 90 x 130 mm
  • Protection degree: IP54
  • Protection class: Class II device
  • Marking: CE
