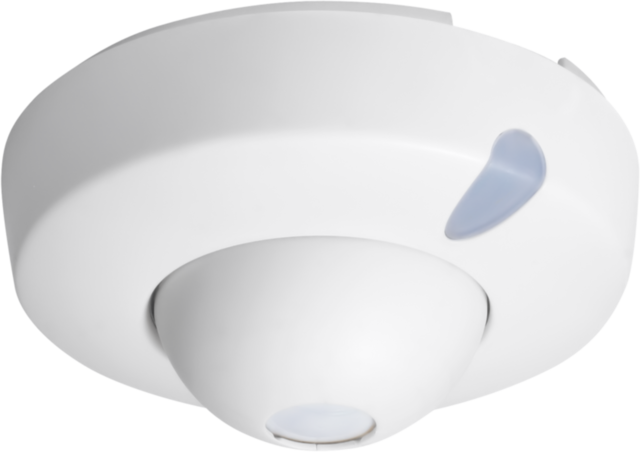

Presence detector 360°, dimmable, 1-channel 1 – 10 V, white

This single-channel presence detector switches a 1 – 10 V output. This presence detector has a circular detection range with a diameter of up to 20 m that can be adjusted with the help of the cover mask. The device has a built-in light sensor and switches the lighting on automatically or manually with an N.O. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically. This motion detector has an IP20 protection degree and conforms to the European directive, EN 60669-2-1, for EMC and safety.

Finishing colour: white

Presence detector 360°, dimmable, 1-channel 1 – 10 V, white.

• Detector technology: PIR
• Detector output: 230 V (ON/OFF)
• Number of channels: 1 channel
• Light intensity range: 50 lux – 1500 lux
• Switch-off delay: 1 min – 1 h
• Detection angle: 360°
• Detection range (PIR): ø 24 m from a height of 3 m
• Ambient temperature: -5 – +50 °C
• Mounting method: surface mounting
• Mounting height: 2.5 – 4 m
• Usage: for indoor use only
• Relay contact: N.O. (max. 10 A)
• Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
• Maximum load fluorescent lamps (cosφ ≥ 0.5): 1150 VA
• Maximum load economy lamps (CFLi): 350 W
• Maximum load LED lamps 230 V: 350 W
• Maximum capacitive load: 140 µF
• Maximum switching current: 165 A/20 ms – 800 A/200 µs
• Dimensions (HxWxD): 127 x 127 x 59 mm
• Protection degree: IP20
• Protection class: Class I device
• Marking: CE
