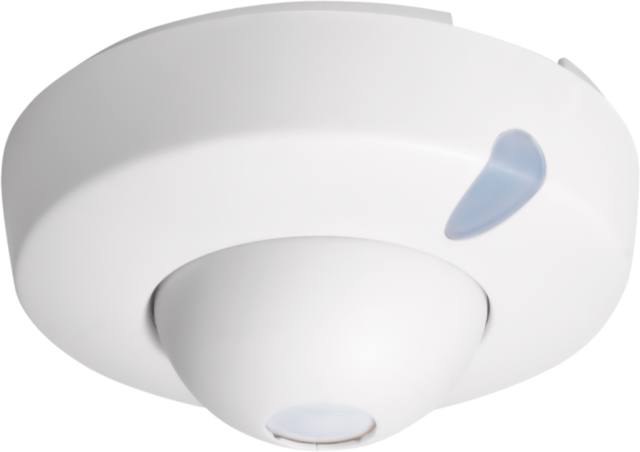

Absence detector 360°, with two channels, to switch lights on and off, white

Reference code
350-20053

No longer available since September 2018

Technical manuals
Certificaten CE-Marking

Description

This 2-channel absence detector is very well-suited for use in classrooms and meeting rooms. The first channel switches the local lighting and the second switches the board lighting. This absence detector has a circular detection range with a diameter of up to 20 m that can be adjusted with the help of the cover mask. The device has a built-in light sensor and switches the lighting on automatically or manually with an N.O. push button (to be ordered separately). After the pre-set time delay, the light is switched off automatically. This motion detector has an IP20 protection degree and conforms to the European directive, EN 60669-2-1, for EMC and safety.

Finishing colour: white

Specification description

Absence detector 360°, with two channels, to switch lights on and off, white.

  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Detector output: 230 V (ON/OFF)
  • Number of channels: 2 channels
  • Light intensity range: 10 lux – 1000 lux
  • Switch-off delay: 1 min – 30 min
  • Detection angle: 360°
  • Detection range (PIR): ø 20 m from a height of 3 m
  • Ambient temperature: -5 – +50 °C
  • Mounting method: surface mounting
  • Mounting height: 2.5 – 3 m
  • Usage: for indoor use only
  • Relay contact: N.O. (max. 10 A)
  • Relay contact 2: N.O. (max. 10 A)
  • Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 1150 VA
  • Maximum load low voltage halogen lamps: 1150 W
  • Maximum load economy lamps (CFLi): 350 W
  • Maximum load LED lamps 230 V: 350 W
  • Maximum capacitive load: 140 µF
  • Maximum switching current: 80 A/20 ms
  • Dimensions (HxWxD): 127 x 127 x 59 mm
  • Dimensions visible (HxWxD): 59 mm
  • Protection degree: IP20
  • Protection class: Class II device
  • Marking: CE
