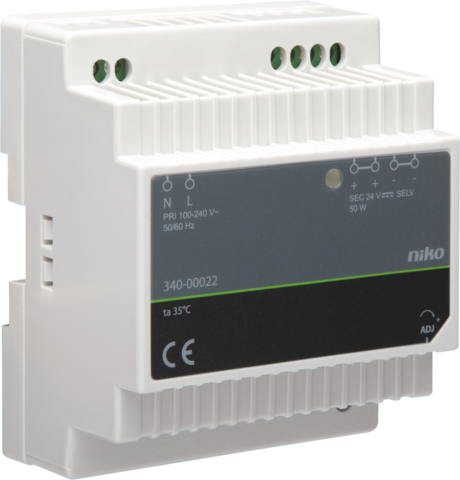

Modular power supply 24 Vdc, 50 W
No longer available since October 2017
Description
This power supply is suitable for powering LEDs and is designed for DIN-rail mounting. It has a power supply of 50 W. This power supply conforms to the European directive for EMC and safety, EN 61347-2-13.
Specification description
Modular power supply 24 Vdc, 50 W.
- Input voltage: 100 – 240 Vac, 50 – 60 Hz
- Output voltage: adjustable 21.6 – 26.4 Vdc
- Maximum load: 50 W
- Primary wire connection: double primary terminal connection: 1 x 2.5 mm² or 2 x 1.5 mm² per screw terminal
- Secondary wire connection: Fourfold secondary terminal connection: 1 x 2.5 mm² or 2 x 1.5 mm² per screw terminal
- Efficiency: 0.83
- Protection degree: IP20
- Safety protections: self-resetting, built-in protection against short-circuit, overload and overheating
- Protection class: Class II device: SELV (safety extra low voltage), independent device
- Usage: for indoor use only
- DIN dimensions: 4.5U
- Marking: CE
- Weight: 460 g
