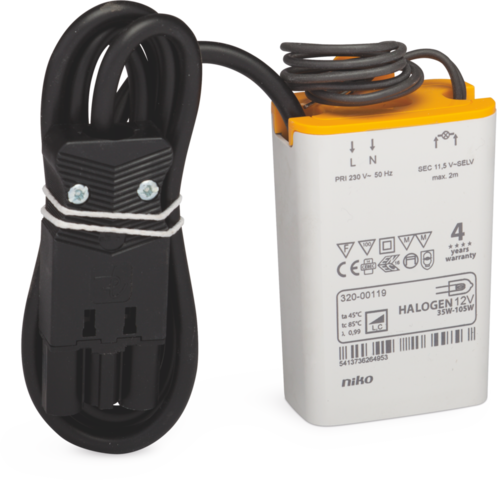

Electronic 105W transformer with a GST connection on the primary side and a Q-distribution block on the secondary side

Reference code
Technical manuals
Inspection certificates


This electronic transformer has a capacity of 105W and is universally dimmable. It is suitable for the connection of low-voltage halogen lamps (12V). On the primary side, the transformer has a GST connection (Wieland). On the secondary side, the transformer is equipped with a Q-distribution block, which ensures rapid, multiple distribution. The necessary cables can be ordered separately. The cables are fixed with resin. The transformer is extremely compact and is therefore very well-suited for installation in small spaces. This transformer is also suitable for flush mounting in furniture. It is equipped with built-in short-circuit, overload and overheating protection. The transformer has an IP20 protection degree.

Specification description

Electronic 105W transformer with a GST connection on the primary side and a Q-distribution block on the secondary side. electronic transformer. with phased on and off control and universal dimmers

  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Primary wire connection: double insulated mains lead with 3-fold input connector, length 1 m
  • Secondary wire connection: Q distribution block with 6 outputs, length 20 cm
  • Number of exits (pairs): 3
  • Maximum wire length secondary connection: 2 m
  • Output voltage: 11.5 Vac, 35 kHz
  • Minimum load: 35 W
  • Maximum load: 105 W
  • Maximum ambient temperature: +50 °C
  • Maximum housing temperature (Tc): 80 °C
  • Minimum drill diameter: 55 mm
  • Minimum free space in false ceiling: 100 mm
  • Application: suitable for flush-mounting in furniture
  • Mounting method: flush-mounting
  • Safety protections: self-resetting, built-in protection against short-circuit, overload and overheating
  • The transformer is self-extinguishing (complies with a filament test of 850 °C) and suited to normal combustible surfaces.
  • Protection degree: IP20
  • Protection class: Class II device: SELV (safety extra low voltage), suitable as a power supply for class III fittings
  • Finishing colour: white
  • Material upperframe: plastic
  • Certification marks: ENEC
  • Marking: CE
