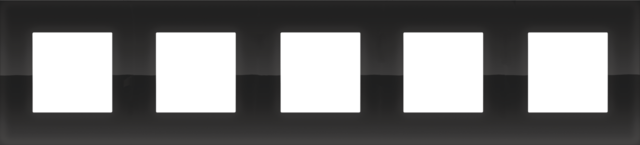

Fivefold faceplate, 71 mm centre distance, Niko Pure liquid black

Reference code
242-76005

Description

Fivefold faceplate with 71 mm centre-to-centre distance from the range Niko Pure. Niko Pure liquid black

Specification description

Fivefold faceplate, 71 mm centre distance, Niko Pure liquid black.

  • Fivefold faceplate for five switches.
  • Colour: enamelled liquid black (approximately NCS S 9000 N, RAL 9005)
  • Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
  • Material upperframe: The upperframe is made of hard-coated PMMA.
  • Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA), black coated.
  • Frame thickness: The upper frame is 2 mm thick and the lower fame 6 mm.
  • Centre-to-centre distance: 71 mm
  • Surface-mounting height: max. 8.5 mm
  • Fire safety
    • completely self-extinguishing faceplate
    • complies with a filament test of 650 °C
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Dimensions (HxWxD): 83 x 367 x 8.9 mm
  • Certification marks: CEBEC, KEMA, NF, VDE, ÖVE, SEMKO
  • Marking: CE
