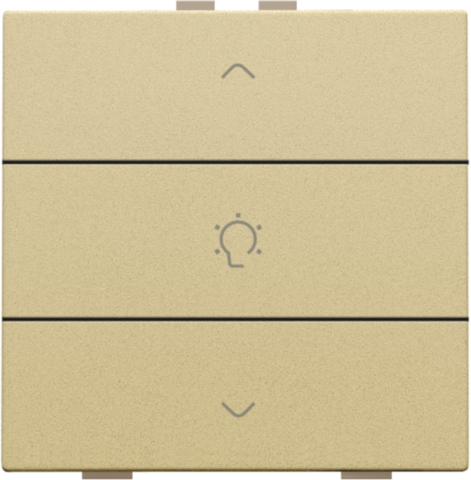

Single dimming control for Niko Home Control, alu gold coated

221-51043

Description

This push button allows you to dim one light point or light circuit. It is attached to the wall-mounted printed circuit board via a click mechanism. Switch including button. Finishing colour: alu gold coated.

Specification description

Single dimming control for Niko Home Control, alu gold coated. Push buttons for dimming are available in a single-row (three action buttons) or double-row (six action buttons) configuration. They allow the resident to operate one or two light points respectively, or groups of light points, via the Niko Home Control installation.

The specific action buttons on each push button are arranged in groups of three.

To mount the push button, press the unit onto a Niko Home Control wall-mounted printed circuit board until it clicks into place. The functions of the action buttons can be assigned while programming the installation by linking each function to the unique address of each action button during the addressing phase. This information is then stored in the controller. Arrows printed on the top and bottom keys show whether you are dimming up or down On the middle key(s) a lamp is printed indicating the favourite button. If you press this key the lighting automatically goes to the set dim level. To dismount simply pull the central plate off the base.

  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: alu-look gold
  • Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
  • The plastic parts of the central plate are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
  • Input voltage: 26 Vdc (SELV, safety extra-low voltage)
  • Minimum ambient temperature: 0 °C
  • Maximum ambient temperature: +50 °C
  • Dimensions (HxWxD): 46.9 x 44.7 x 10.2 mm
