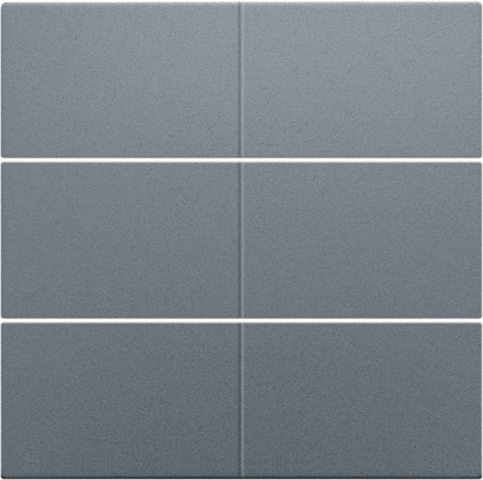

Finishing set for sixfold potential-free push button 24 V, blue grey coated

Reference code
220-60050
Technical datasheets
Certificaten CE-Marking

Description

Finishing set for a push button with six potential-free 24 V control buttons used to control various lighting points in one or more rooms. Finishing colour: blue grey coated.

Specification description

Finishing set for sixfold potential-free push button 24 V, blue grey coated.

  • Function: The three keys (1 per 2 push buttons) are clicked onto the sixfold, potential-free push button at the bottom and the top and are held in place by the snap hooks on the base of the potential-free push button. The back of each key is equipped with two legs that push on the push buttons of the base when the key is pressed.
  • Number of control buttons: 6 control buttons
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: enamelled blue grey (approximately NCS S 8005 - R80B, RAL 240 30 05)
  • Text field: The finishing plate is placed in the centre and consists of two parts: a visible part and an attachment part.
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
