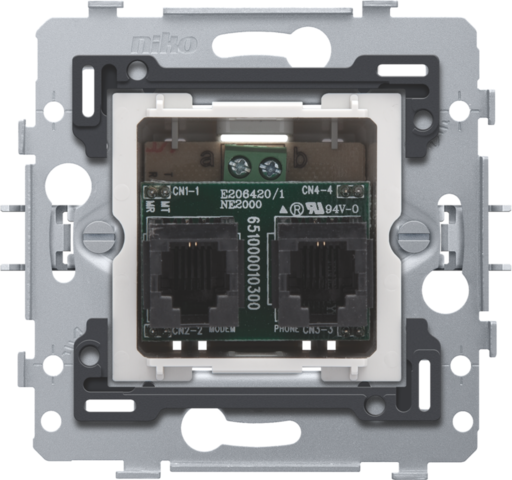

Flush-mounting socket with screw terminals and claws with RJ11 outlet and ADSL outlet, with claw fixing. This ADSL splitter can also be used for ADSL2, ADSL2+ and VDSL2.
Flush-mounting socket ADSL splitter. The ADSL-splitter distinguishes an ADSL signal from a telephone signal. The ADSL-splitter is equipped with two RJ11 outputs. One RJ11 output is for connection on an ADSL modem, the other is for connection of a telephone. At the top of the housing there is an opening containing two connection terminals to which the wires of a telephone cable may be connected. The ADSL splitter is clicked into a 45 x 45 mm, metal flush-mounting frame. The ADSL splitter complies with specifications for use on the Belgacom-telephone network and is in compliance with the ETSI-standard TS 101952-1-5 option B. The filter also complies with specifications for use on the French ADSL network. Complies with EN 60950-1. The stripping length is around 3 mm. When mounting the socket outlet in a flush-mounting box with grip surfaces, use claws that can be rotated open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm). The claws, which have a depth of engagement of 31 mm, can be manually pushed back into their original position after unscrewing. These claws can also be easily pushed out using a screwdriver. The flush-mounting frame is made from 1 mm-thick metal which is galvanized on all sides after cutting, even on the cut edges. On the horizontal and vertical axes, the flush-mounting frame has 4 grooves for screw mounting in flush-mounting boxes. These grooves have a screw aperture of 7 mm. For mounting on panels, the flush-mounting frame is equipped with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm. The middle of the flush-mounting frame is indicated (chalk line, laser, ..) in both the horizontal and vertical directions, so that mounting one or more mechanisms can be carried out quickly and easily. The base is equipped on all sides with folded-up dovetails, allowing for both vertical and horizontal coupling (centre-to-centre distance of 71 x 71 mm) of several bases to be carried out quickly and perfectly. The folded-up edges on the outside of the base and their continuation to the inside ensure additional robustness. The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the flush surround plate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the flush surround plate in relation to the central plate.
