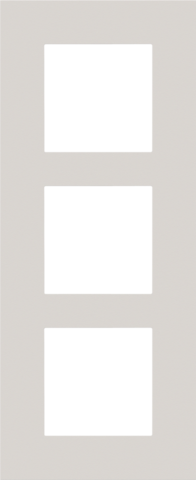

Threefold faceplate, 60 mm centre distance, vertical, Niko Pure natural soft grey

Threefold faceplate with 60 mm centre-to-centre distance, vertical, from the range Niko Pure. Niko Pure natural soft grey

Threefold faceplate, 60 mm centre distance, vertical, Niko Pure natural soft grey.

• Threefold faceplate for three switches.
• Colour: natural soft grey (approximately NCS S 2005 - Y10R, RAL 090 80 10)
• Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
• Material upper frame: The upper frame is made of marmoleum.
• Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
• Frame thickness: The upper frame is 2 mm thick and the lower fame 6 mm.
• Precautions: It is best not to place this faceplate in rooms that are continually damp (e.g. pools, saunas).
• Centre-to-centre distance: 60 mm
• Surface-mounting height: max. 8.5 mm
• Fire safety
  • the complete faceplate is halogen-free.
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 203 x 83 x 8.9 mm
• Certification marks: CEBEC
• Marking: CE
