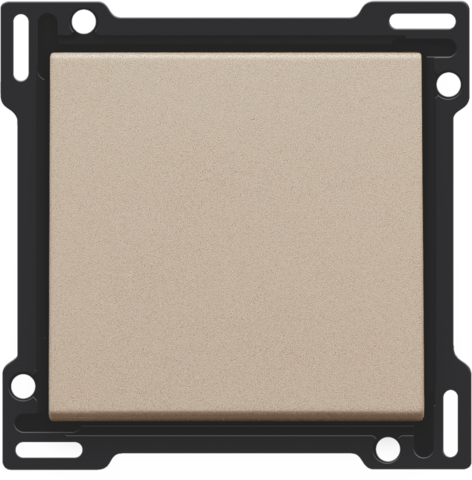

Finishing set for push-button dimmer, champagne coated

Reference code
157-31001

No longer available since May 2020

Certificaten CE-Marking

Description

Finishing set with a push button for a push-button dimmer. Finishing colour: champagne coated.

Specification description

Finishing set for push-button dimmer, champagne coated. This central plate is surrounded with a flat edge that is equipped at all 4 corners with a rectangular opening, each containing a multi-positional snap hook. The construction of the central plate ensures that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The flat edge around the central plate also has 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate. After mounting all components (faceplate, finishing set and switch), no metal parts are visible thanks to the flat edge of the central plate.

  • Function: The key and the intermediate plate (board) form one unit.
  • Number of control buttons: 1 control button
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: enamelled champagne (approximately NCS S 4005 - Y20R, RAL 080 70 10)
  • Dismantling: For dismounting the central plate, the flat edge is equipped with two notches indicated by a screwdriver symbol. The central plate can easily be dismounted using a slotted screwdriver.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing with flat edge: 56 x 56 mm (HxW)

Dimensions of visible area of finishing: 45 x 45 mm (HxW)

  • Dimensions (HxWxD): 55.8 x 55.8 x 10.5 mm
  • Marking: CE
