This article is (or will soon be) unavailable. It has been replaced by the following article(s):

The new faceplate is coloured in one piece (the sides are the same colour as the front) and has a subtly embossed Niko logo on the front (lower left corner) whereas the old faceplate had white sides and a printed logo on the side. With this modification, we meet the rising demand for single-tone switching material.

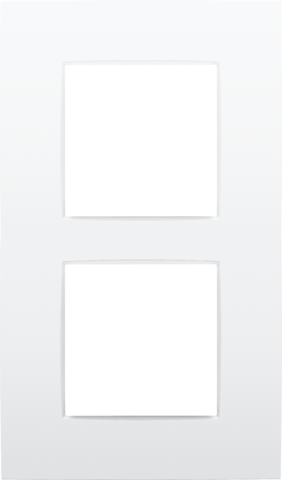

Twofold faceplate, 60 mm centre distance, vertical, Niko Intense lunar white coated

Reference code
131-76200

Available until October 2024

Description

Twofold faceplate with 60 mm centre-to-centre distance, vertical, from the range Niko Intense. Niko Intense lunar white coated

Specification description

Twofold faceplate, 60 mm centre distance, vertical, Niko Intense lunar white coated.

  • Double faceplate for two switches.
  • Colour: enamelled lunar white (approximately NCS S 1002 - B50G, RAL 000 90 00)
  • Recommended colour central plate: white coated
  • Frame composition: It is made of dimensionally stable pc+asa.
  • Varnish upper frame: The upper frame is enamelled lunar white.
  • Centre-to-centre distance: 60 mm
  • Surface-mounting height: max. 8.5 mm
  • Fire safety
    • self-extinguishing: complies with a filament test of 650°C
    • halogen-free
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Dimensions (HxWxD): 143 x 85 x 8.9 mm
  • Certification marks: CEBEC, SEMKO, VDE, NF, KEMA, ÖVE
  • Marking: CE
