This article is (or will soon be) unavailable. It has been replaced by the following article(s):

The new coax connector has a TV frequency band of 2 GHZ.

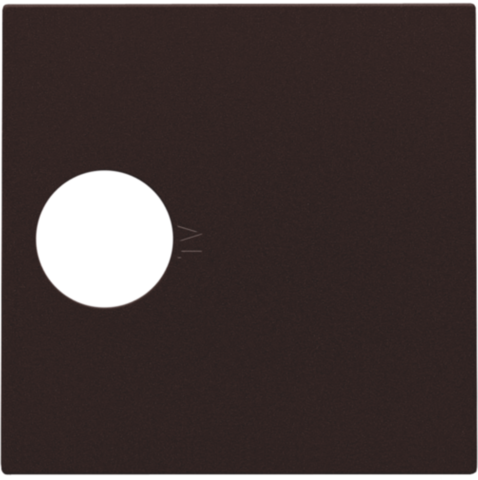

Finishing set for single coax connection for TV, dark brown coated

Reference code
124-69101

Available until February 2025

Technical datasheets
Certificaten CE-Marking

Description

Central plate with a single male coax input is intended for your television connection. The input is indicated with a TV icon. Finishing colour: dark brown coated.

Specification description

Finishing set for single coax connection for TV, dark brown coated.

  • Function: The central plate is clicked onto a TV/FM outlet with a single coax connection.
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Colour: enamelled dark brown (approximately NCS S 8505 - Y20R, RAL 060 30 05)
  • Print: The central plate is engraved with 'TV’.
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
