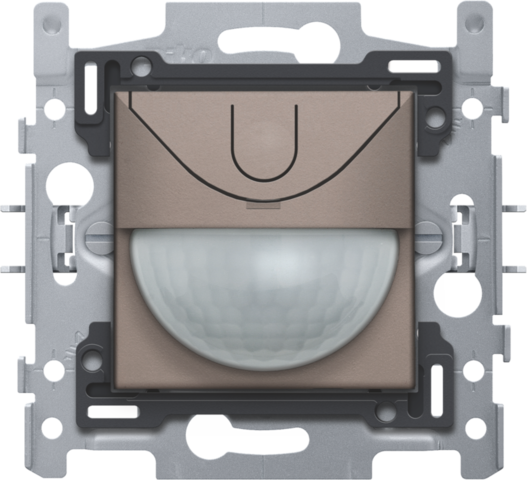

Indoor motion detector 180°, 230 V, 8 m, with switching contact 4 A, greige

Reference code
104-78020

No longer available since March 2019

Technical manuals
Certificaten CE-Marking

Description

With this integrated motion detector with a 4 A, single-channel, potential-free, changeover contact, you have a detection angle of 180° horizontally and 60° vertically within which all motion is detected. When a motion is detected, pre-selected lights are activated.

Finishing colour: greige

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Specification description

Indoor motion detector 180°, 230 V, 8 m, with switching contact 4 A, greige.

  • Function: The motion detector has a detection angle of 180° horizontally, and 60° vertically within which all motion is detected. When a motion is detected, pre-selected lights are activated.
  • Colour: greige (coloured in mass, approximately NCS S 5005 - Y50R, RAL 080 60 05)
  • Connection terminals: 4 connection terminals
  • Maximum load incandescent and halogen lamps (cosφ = 1): 920 W
  • Maximum load fluorescent lamps (cosφ ≥ 0.5): 575 VA
  • Light intensity range: 2 lux – 1000 lux
  • Ambient temperature: 0 – 40 °C
  • Mounting height: 0.8 – 1.2 m
  • Switch-off delay: 5 s – 30 min
  • Detection range (PIR): 8 m horizontal
  • Detection angle horizontal: 180°
  • Detection angle vertical: 60°
  • Material central plate: The central plate is enamelled and made of rigid PC and ASA.
  • Flush-mounting frame
    • 1 mm-thick metal
    • galvanized on all sides after cutting, even on the cut edges
    • with 4 grooves with screw hole of 7 mm
    • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
  • Fixing method
    • with claws that can be rotated open using screws with a slotted screw head (slot 0.8 x 5 mm), for mounting in a flush-mounting box with grip surfaces
    • depth of engagement of claws: 31 mm
    • claws turn back completely when loosened
  • Centre-to-centre distance
    • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
    • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
    • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
    • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
    • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
  • End border: The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate.
  • Wire connection
    • the sockets are equipped with screw terminals for clamping the wires.
  • Wire capacity
    • 2 x 1.5 mm² or 1 x 2.5 mm² per connection terminal
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • An external push button or switch can be connected to the device.
  • You can also turn lighting on and off manually with the push button on the unit. After four hours the light switches off automatically.
  • Ambient temperature during storage and transport: -25 to +70 °C
  • Marking: CE
