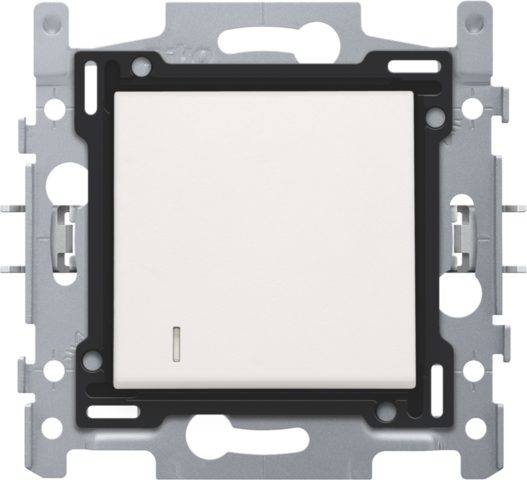

Double pole 16 A control switch, base, screw terminals and finishing set

Reference code
101-67300

This item is also available in a version with plug-in terminals. Reference code 101-67308

Technical manuals
Inspection certificates

Description

Compound double-pole control switch (base and finishing set). The base is equipped with screw terminals and claw fixing. There is a lens on the switch that can work with an LED module in various colours.

Specification description

Double pole 16 A control switch, base, screw terminals and finishing set.

  • Protection degree: IP20
  • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP41
  • The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Certification marks: CEBEC, NF
  • Marking: CE

Base for a two-pole switch, two-pole control switch or two-pole pull switch, 16 AX/250 Vac, screw terminals. The switch is equipped with block-shaped, silver contacts (cadmium-free) in the form of a cross. The sockets are fitted with cage clamps with permanent screws. These screws have combination screwheads (Pz1 or slot 1 x 5 mm). Moreover, every screw is provided with a screwdriver slot that prevents the screwdriver from sliding off the screwhead. All connection terminals are located at the top of the end socket and can contain up to 2 x 2.5 mm² of wire. The stripping length (8 mm) of the wires and the wiring diagram are indelibly indicated at the back of the base. The terminals and the switch symbol are indelibly indicated at the front. At the bottom, the base is equipped with rectangular recesses for integration of a lighting element. A lighting element with wires or an automatic lighting unit can be clicked in the left recess (front view). At the back, the base is equipped with round recesses that ensure that the automatic lighting element makes direct contact with the mechanism when being clicked in and, in this way, is immediately connected.

When mounting the socket outlet in a flush-mounting box with grip surfaces, use claws that can be rotated open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm). The claws, which have a depth of engagement of 31 mm, can be manually pushed back into their original position after unscrewing. These claws can also be easily pushed out using a screwdriver. The flush-mounting frame is made from 1 mm-thick metal which is galvanized on all sides after cutting, even on the cut edges. On the horizontal and vertical axes, the flush-mounting frame has 4 grooves for screw mounting in flush-mounting boxes. These grooves have a screw aperture of 7 mm. For mounting on panels, the flush-mounting frame is equipped with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm. The middle of the flush-mounting frame is indicated (chalk line, laser, ..) in both the horizontal and vertical directions, so that mounting one or more mechanisms can be carried out quickly and easily. At the right and left sides, the flush-mounting frame is equipped with folded-up dovetails, allowing for a quick and perfect horizontal coupling of several switches. The folded-up edges on the outside of the base and their continuation to the inside ensure additional robustness. The bases can be coupled vertically with a centre-to-centre distance of 60 x 71 mm by sliding them into each other. They automatically lock into place. For horizontal coupling of bases with a centre-to-centre distance of 71 mm, the base is equipped with two pre-formed lips at the bottom. By folding these lips down over a length of 1 mm, this rests perfectly on the one below and the centre-to-centre distance of 71 mm is guaranteed. The 4 rectangular openings (7 x 2.5 mm) in the flush-mounting frame can compensate for a margin of 1 to 1.2 mm if the flush-mounting box protrudes beyond the plasterwork. In the case of such a margin, the faceplate can still butt up perfectly against the wall.

  • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP41
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • SBL load: 200 W
  • Flush-mounting depth: 18 mm
  • Ambient temperature: -5 – +40 °C
  • Certification marks: CEBEC, NF
  • Marking: CE

Finishing set with lens for single switch or push button, white. The key and the intermediate plate (board) form one unit. The key on the push button is fitted at the bottom with a small amber-coloured LED (1.5 x 1.5 mm) to indicate the status of the action. This central plate is surrounded with a flat edge that is equipped at all 4 corners with a rectangular opening, each containing a multi-positional snap hook. The construction of the central plate ensures that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The flat edge around the central plate also has 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate. After mounting all components (faceplate, finishing set and switch), no metal parts are visible thanks to the flat edge of the central plate. For dismounting the central plate, the flat edge is equipped with two notches indicated by a screwdriver symbol. The central plate can easily be dismounted using a slotted screwdriver.

  • Number of control buttons: 1 control button
  • Material central plate: The central plate is made of rigid PC and ASA. The base material is coloured in mass.
  • Colour: white (coloured in mass, approximately RAL 9010)
  • Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP41
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • The plastic parts of the central plate are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
  • Dimensions of finishing with flat edge: 56 x 56 mm (HxW)

Dimensions of visible area of finishing: 45 x 45 mm (HxW)

  • Marking: CE
