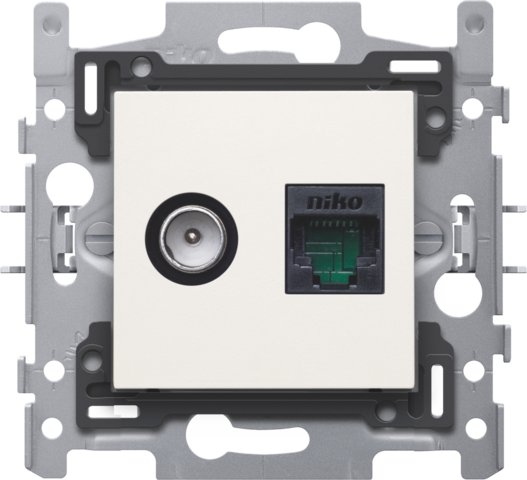

Combination coax with RJ45 connection, UTP Cat6, flat model, incl. base with internal dimensions of 45x45mm and external dimensions of 60 x 71mm, base and finishing set

Reference code
101-65258
Technical datasheets
Technical manuals
Inspection certificates
Certificaten CE-Marking

Description

This mechanism with RJ45 connection point Cat6 UTP and coaxial connection is used to make a network connection for telephone, Ethernet, IP or internet applications. All connection points of the mechanism are connected in star configuration to the central connection cabinet using a cable of the same performance type. The flush-mounting frame has internal dimensions of 45 x 45mm and external dimensions of 60 x 71mm and is equipped Incl. afwerkingsset

Specification description

Combination coax with RJ45 connection, UTP Cat6, flat model, incl. base with internal dimensions of 45x45mm and external dimensions of 60 x 71mm, base and finishing set.

  • Protection degree: IP20
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Battery: NA
  • Marking: CE

Combination coax with RJ45 connection UTP Cat6, flat model, 60 x 71 mm incl. claw fixing.

  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Dimensions (HxWxD): 71 x 73.2 x 41.7 mm
  • Marking: CE

Universal base for 45 x 45 mm functions.

  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Flush-mounting frame
    • 1 mm-thick metal
    • galvanized on all sides after cutting, even on the cut edges
    • with 4 grooves with screw hole of 7 mm
    • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
  • Fixing method
    • simple mounting in a flush-mounting box with grip surfaces
    • with claws that rotate open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm), for mounting in a flush-mounting box with grip surfaces
    • engagement depth of claws: 31 mm
    • claws can be pushed back into their original position
    • claws can be easily pushed out using a screwdriver
  • Centre-to-centre distance
    • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
    • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
    • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
    • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
    • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
  • End border: The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate.
  • Ambient temperature: -5 – +40 °C
  • Dimensions (HxWxD): 45 x 45 mm
  • Marking: CE

Unshielded RJ45 connector Cat 6 for band widths up to 250MHz

  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Marking: CE

Adapter 9.5, single, flat for RJ connectors 650-450xx

  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Marking: CE

Finishing set for single coaxial connection and network connection RJ45, white.

  • Material central plate: The central plate is made of rigid PC and ASA. The base material is coloured in mass.
  • Colour: white (coloured in mass, approximately RAL 9010)
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • The plastic parts of the central plate are self-extinguishing (comply with a filament test of 650°C)
    • The plastic parts of the central plate are halogen-free.
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
