Flush-mounted ADSL splitter cream

Base for claw fixing with finishing set and 2 outlets for ADSL/VDSL. This splitter can also be used for ADSL2, ADSL2+ and VDSL2. Finishing colour: cream

Flush-mounted ADSL splitter cream.

• Marking: CE

Flush-mounting socket ADSL splitter, claw fixing. The stripping length is around 3 mm. When mounting the socket outlet in a flush-mounting box with grip surfaces, use claws that can be rotated open using screws with a combination screwhead (Pz1 or slot 1 x 5 mm). The claws, which have a depth of engagement of 31 mm, can be manually pushed back into their original position after unscrewing. These claws can also be easily pushed out using a screwdriver. The flush-mounting frame is made from 1 mm-thick metal which is galvanized on all sides after cutting, even on the cut edges. On the horizontal and vertical axes, the flush-mounting frame has 4 grooves for screw mounting in flush-mounting boxes. These grooves have a screw aperture of 7 mm. For mounting on panels, the flush-mounting frame is equipped with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm. The middle of the flush-mounting frame is indicated (chalk line, laser, ..) in both the horizontal and vertical directions, so that mounting one or more mechanisms can be carried out quickly and easily. The base is equipped on all sides with folded-up dovetails, allowing for both vertical and horizontal coupling (centre-to-centre distance of 71 x 71 mm) of several bases to be carried out quickly and perfectly. The folded-up edges on the outside of the base and their continuation to the inside ensure additional robustness. The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the flush surround plate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the flush surround plate in relation to the central plate.

• Protection degree: The combination of a mechanism, a central plate and a flush surround plate has a protection degree of IP41
• Marking: CE

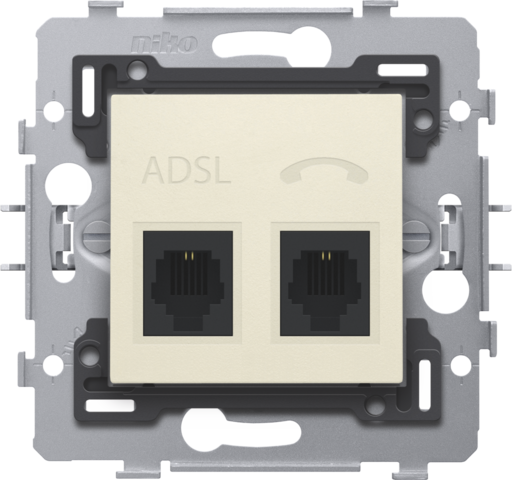

Central plate ASDL - tel, cream. The central plate is equipped with two rectangular openings for the RJ11 connectors, and is clicked onto the base. The central plate comes complete with two grooves (a telephone symbol and an ADSL symbol).

To dismount simply pull the central plate off the mechanism.

• Protection degree: The combination of a mechanism, a central plate and a flush surround plate has a protection degree of IP41
• Material central plate: The central plate is made of rigid PC and ASA. The base material is coloured in mass.
• Colour: cream (coloured in mass, approximately RAL 1013)
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• The plastic parts of the central plate are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
• Dimensions of finishing: 45 x 45 mm (HxW)
• Marking: CE
