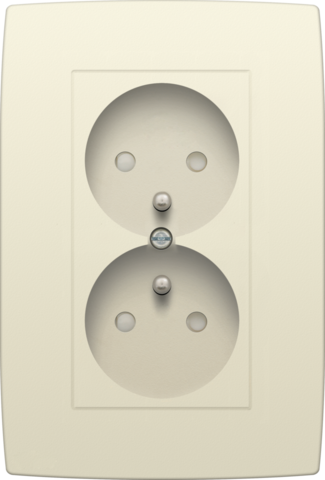

Double socket outlet vertical with pin earthing and safety shutters, flush-mounting depth 31.5 mm, complete device incl. flush surround plate, cream

Reference code
100-67700

Description

Double flush-mounted socket outlet 16 A/250 V AC with pin earthing and safety shutters for vertical installation with flush-mounting depth 31.5 mm. The flush surround plate is attached to the socket outlet with screws. Complete device incl. flush surround plate and pre-assembled finishing set, Finishing colour: cream

Specification description

Double socket outlet vertical with pin earthing and safety shutters, flush-mounting depth 31.5 mm, complete device incl. flush surround plate, cream. The sockets are equipped with screw terminals for clamping the wires. The socket outlet has a solid brass nickel-plated earth pin (pin earthing). All connection terminals are located at the top of the end socket and can contain up to 4 x 2.5 mm² of wire. The earthing terminal even up to 2 x 2.5 mm² + 2 x 4 mm². When fixing in a flush-mounting box screws should be used. The flush-mounting frame is made of 1 mm-thick metal and is galvanized on all sides. On the horizontal and vertical axes, the flush-mounting frame has grooves for mounting into floor boxes with screws. The central plate is made of impact-resistant, dustproof and rigid polycarbonate. The base material is coloured in mass.

  • Colour: cream (coloured in mass, approximately RAL 1013)
  • Type of earthing: pin earthing
  • Power: 16 A/250 Vac
  • All plastic components are self-extinguishing (comply with a filament test of 650°C) and are halogen-free.
  • Protection degree: IP21 (designed for use in an environment with non-condensing humidity)
  • Flush-mounting depth: 24 mm
  • Certification marks: CEBEC, NF
