Step 2

Adapt rotary switch for roll-down shutters

Identify the present connection diagram and mark the following wires with labels:

  • Phase conductor supplying 230 V
  • Wires that lead to the motor

Warning: In reality, the switching can look different to what you see on the drawing. The wires leading to the lamp do not always go upwards. Also, the phase conductor and neutral conductor may be in a different colour. Therefore, use a multimeter to correctly identify the connection diagram.

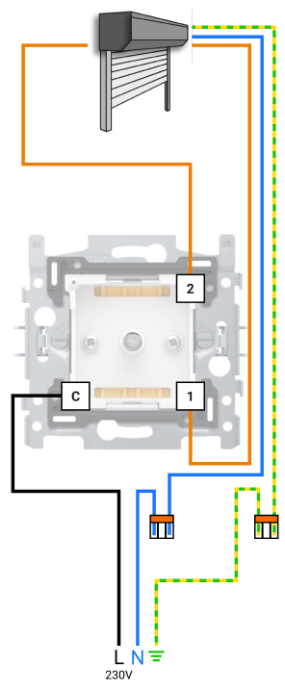

Current connection diagram



Back to Identify the motor control

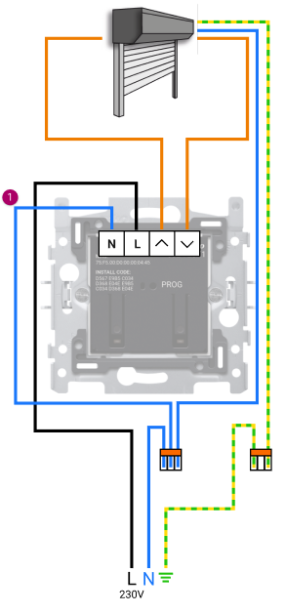

Niko Home Control connection diagram

Connect the connected motor control.

You need an extra wire, because you must connect the neutral conductor to the connected motor control (you can also establish a connection via the N terminal).

Note: You can only connect one motor to the connected motor control (unless other stated in the motor manual).

Back to Identify the motor control

Continue
